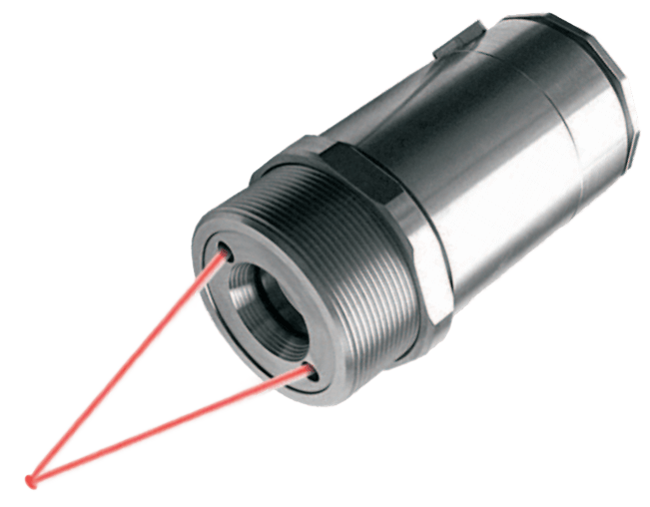

PSC-CS-Laser Infrared Thermometer
Brand: Process Sensors CorporationDigital 2-wire, self-contained infrared thermometer with precision dual laser targeting from -50° to 1,600° C (-58° to 2,912° F).
Features- Fast, high accuracy and small spot size
- Optical resolution up to 300:1 with selectable optics
- Double laser aiming identifies real spot location and actual spot size at any distance
- Scalable 4-20 mA output in combination with simultaneous alarm output
- USB programming interface and software - optional
- On board emissivity adjustment or remote via software
- Short circuit and polarity reversal protection
- Usable up to 85° C (185° F) ambient temperature without cooling
- Automatic laser switch off at 50° C (-58° F)
Specifications
Accuracy
- 2MH: ± [0.3 % of Reading + 2° C (3.6° F)]
- LT: ± 1 %
- LT: ± 1° C (± 1.8° F)
Ambient Temperature Range
- -20° to 85° C (-4° to 185° F) (50° C with Laser On)
Cable Length
- 10 to 50 ft (3 to 15 m)
Communication
- Baud Rate: 9.6 Kbps
- USB
Current
- Current Draw (Laser): 12 mA at 24 V
- Current Draw (Laser): 20 mA at 12 V
- Current Draw (Laser): 45 mA at 5 V
Electrical Protection
- Reverse Polarity
Environmental Protection
- IP65
- IP66
- NEMA 4
Function
- Hold
Humidity
- 10 to 95 % RH, Non-Condensing
Loop Resistance
- Maximum
Output
- 0-3 V Digital Level
- Alarm: 0-30 V
- Alarm: 500 mA (Open Collector)
- Analog: 4-20 mA
Power Supply
- 5-28 Vdc
Range
- Spectral: 1.6 µm / PSC-CS Laser-2MH
- Spectral: 8 to 14 µm / PSC-CS Laser-LT
Repeatability
- 2MH: ± [0.1 % of Reading + 1° C (1.8° F)]
- LT: ± 0.5 %
- LT: ± 0.5° C (± 0.9° F)
Resolution
- Optical Resolution 300:1 (2MH)
- Optical Resolution 50:1 (LT)
- Temperature Resolution (Digital): 0.1 K
Response Time
- 2MH: 10 ms
- LT: 150 ms
Shock
- IEC 68-2-27: 50 G, 11 ms, any Axis
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Temperature Range
- 385° to 1,600° C (725° to 2,912° F) (2MH)
- -50° to 975° C (-58° to 1,787° F) (LT)
Vibration
- IEC 68-2-6: 3 G at 11 to 200 Hz, any Axis
