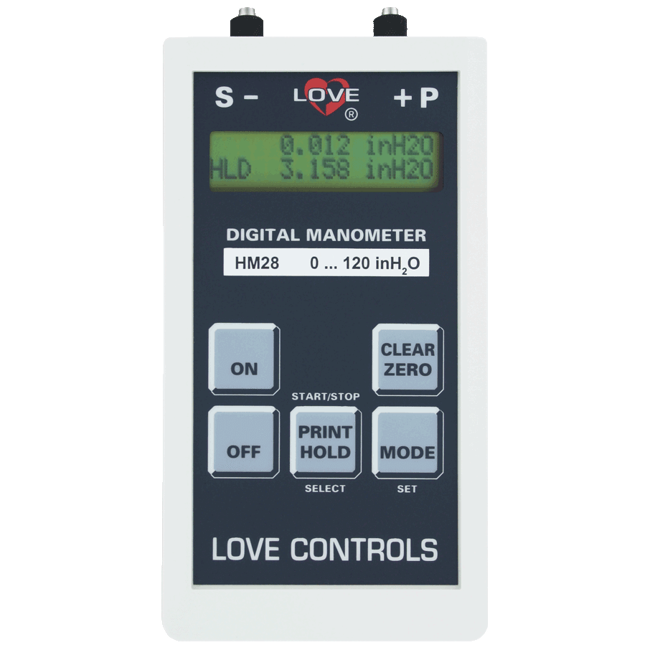

Series HM28 Precision Handheld Digital Manometer
Brand: Dwyer Instruments, LLCThe Series HM28 Digital Hand-Held Manometer is a precision instrument designed to measure a wide range of pressures to a very high accuracy.
The unit incorporates a variety of features in an easy to use format that makes it useful in a wide variety of applications.
Features include: measurement in all common pressure ranges, display resolution to 0.001, differential or relative measurement, two line liquid crystal display, and adjustable auto power off to conserve battery.
We are so proud of the accuracy of the HM28 that we provide a certificate of calibration with the unit at no additional cost.
Depending on your application, the HM28 can be used as a secondary calibration standard for your other pressure instrumentation.
Features- Measures Differential, Gauge, or Absolute Pressure
- Able to Record Up to 964 Readings, Which can be Downloaded to a PC
- Up to 0.05% Accuracy
1 - 12 of 26 Part Numbers
HM28A30000
- Pressure Type - Absolute Pressure
- Certificates - None
HM28A30000NISTCAL-MD
- Pressure Type - Absolute Pressure
- Certificates - NIST Traceable Calibration Certificate
HM28A310000
- Pressure Type - Absolute Pressure
- Accuracy - 0.2 % Full Scale
- Certificates - None
HM28A310000NISTCAL-MD
- Pressure Type - Absolute Pressure
- Accuracy - 0.2 % Full Scale
- Certificates - NIST Traceable Calibration Certificate
HM28A31I0000
- Pressure Type - Absolute Pressure
- Accuracy - 0.2 % Full Scale
- Pressure Range - psia: 0 to 15.9 (bar: 0 to 1.096, kpa: 0 to 109.6)
- Certificates - None
HM28A31I0000NISTCAL-MD
- Pressure Type - Absolute Pressure
- Accuracy - 0.2 % Full Scale
- Pressure Range - psia: 0 to 15.9 (bar: 0 to 1.096, kpa: 0 to 109.6)
- Certificates - NIST Traceable Calibration Certificate
HM28D310000
- Pressure Type - Gauge, Underpressure, & Differential Pressure
- Accuracy - Error Limit 0.2% Full Scale
- Certificates - None
HM28D310000NISTCAL-MD
- Pressure Type - Gauge, Underpressure, & Differential Pressure
- Accuracy - Error Limit 0.2% Full Scale
- Certificates - NIST Traceable Calibration Certificate
HM28D31B0000
- Pressure Type - Gauge, Underpressure, & Differential Pressure
- Accuracy - Error Limit 0.2% Full Scale
- Pressure Range - Inches WC: 0 to 10
- Certificates - None
HM28D31B0000NISTCAL-MD
- Pressure Type - Gauge, Underpressure, & Differential Pressure
- Accuracy - Error Limit 0.2% Full Scale
- Pressure Range - Inches WC: 0 to 10
- Certificates - NIST Traceable Calibration Certificate
HM28D31C0000
- Pressure Type - Gauge, Underpressure, & Differential Pressure
- Accuracy - Error Limit 0.2% Full Scale
- Pressure Range - Inches WC: 0 to 28
- Certificates - None
HM28D31C0000NISTCAL-MD
- Pressure Type - Gauge, Underpressure, & Differential Pressure
- Accuracy - Error Limit 0.2% Full Scale
- Pressure Range - Inches WC: 0 to 28
- Certificates - NIST Traceable Calibration Certificate
1 - 12 of 26 Part Numbers
Specifications
Brand
Accuracy
- ± 0.05 % of Full Scale ± 1-Digit
- ± 0.10 % of Full Scale ± 1-Digit
- ± 0.20 % of Full Scale ± 1-Digit
Approvals & Certifications
- CE
Communication
- Baud Rate: 1,200, 2,400, 4,800 & 9,600 bit/sec
Consumption
- < 9 mA
Dimensions
- 6" x 3.27" x 1.34" (152 x 83 x 34 mm)
Display
- 2 Line x 16-Characters
- LCD (Dot Matrix)
Environmental Protection
- IP54
- NEMA 3
Humidity
- 30 to 95 % RH, Non-Condensing
Media
- Air
- Compatible Gases
NPT Connection
- 1/8" NPT
Power Requirement
- 7-14 Vdc
- 9 V Alkaline Battery
Pressure Range
- inH₂O: 0 to 120
- psi: 0 to 100 (kPa: 0 to 689.5, bar: 0 to 7)
Storage Temperature
- -10° to 60° C (14° to 140° F)
Temperature Range
- -5° to 50° C (23° to 122° F)
Wetted Materials
- 18/8 Stainless Steel
- Calibration Facilities
- Laboratories
