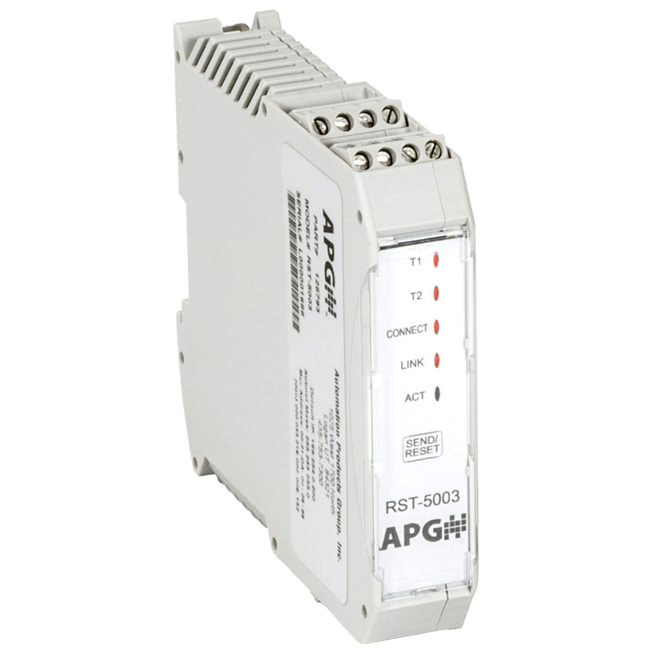

RST-5000 Series Internet Communications Module
Brand: Automation Products Group - APG/RST-5000-Series-Internet-Communications-Module/002_AP_RST-5000_Communication_Module.png)
The RST-5001/011/111/002/012/112 offers affordable remote tank monitoring by taking your 4-20 mA device and posting the readings to a secure website, sending you an email or a text alarm to your cell phone. Connect up to 10 sensors using the RST-5000 Series as the master for an RS-485 network.
Features- Cost Effective
- Compatable with any 4-20 mA device
- Ethernet Port (TCP/IP)
- Internal Web Page
- Connect up to 10 Sensors
1 - 12 of 12 Part Numbers
/RST-5000-Series-Internet-Communications-Module/Thumbs/200_main_AP_RST-5000_Communication_Module.png)
RST-5-001
- Base Model - 4-20 mA Input, 2 Relay Outputs
RST-5-002
- Base Model - 4-20 mA Input, RS-485 Interface, 2 Relay Ouputs
RST-5-011
- Base Model - 4-20 mA Input, 1 Relay Output, 1 Input
RST-5-012
- Base Model - 4-20 mA Input, RS-485 Interface, 1 Relay Output, 1 Input
RST-5-111
- Base Model - 4-20 mA Input, 2 Inputs
RST-5-112
- Base Model - 4-20 mA Input, RS-485 Interface, 2 Inputs
RST-6001
1 - 12 of 12 Part Numbers
Specifications
Communication
- RS-485
Electrical Connectors
- RJ45 Port
Enclosure, Body Material
- Polyimide
Mounting
- 33 mm DIN Rail
Operating Temperature - Electronics
- -40° to 60° C, -40° to 140° F
Resolution
- 12-bits
Response Time
- 50 Hz, 20 ms
Supply Voltage
- 24 Vdc
- 48 Vdc POE
