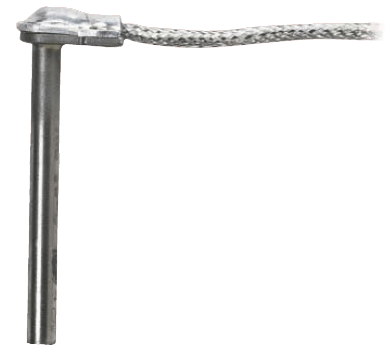

TWE-7 Resistance Thermometer
Brand: KOBOLD Instruments, Inc
The immersion and insertion resistance thermometers comprise a rugged sensor made of stainless steel. Depending on the version, the connecting leads are suitable for dry or moist rooms. The junction between connecting lead and protective tube is strain relieved.
Pt 100 temperature sensors according to IEC 751, class B are used as standard. Other classes or versions are also available with Pt500 and Pt1000.
These sensors are available as single or double resistance thermometers. The immersion and insertion resistance thermometers are available in two, three or four-wire circuitry.
Specifications
Brand
Applications
- Heating Equipment
- Industrial Service
- Machine Construction
- Temperature Measurement
Cable Length
- 8.2 ft (2.5 m) Standard
Cable Material
- PTFE
Electrical Connectors
- Insulated Cable
Materials of Construction
- 316Ti Stainless Steel - Bulb
Sensor / Probe Connection
- 2-Wire
- 3-Wire
Sensor / Probe Type
- Pt100
- Pt1000
- Pt500
Temperature Range
- -20° to 150° C (-4° to 302° F)
