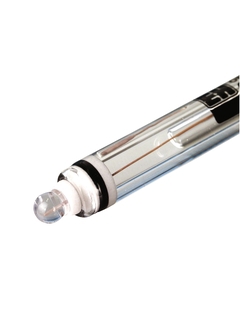

Analog pH sensor Orbisint CPS11
Brand: Endress+Hauser Group Services AG
Orbisint CPS11 is the all-rounder for pH measurement in process and environmental applications. It performs reliably and accurately even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the sensor offers you best value for money.Features
- Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm
- Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)
- Optional salt ring for low conductivity applications such as boiler feed water and water for injection
Specifications
Measuring principle
- Potentiometric
Application
- Standard applications in process and the environment. Long-term monitoring, processes with little change.
Characteristic
- Very robust, heavy-duty version / high pressure, integrated potential matching, flat membrane available.
Measuring range
- pH 0-14
Design
- - all shaft lengths with temperature sensor
- - advanced gel technology.
- - With dirt-repellent PTFE diaphragm.
Material
- Glass / PTFE
Dimension
- Diameter: 12 mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm
- (4.68, 8.77, 14.04 and 16,57 inch)
Process temperature
- max. 135°C (274°F)
Process pressure
- max. 16 bar (230 psi)
Temperature sensor
- optional with integrated Pt100 or Pt1000
Ex certification
- Simple operational equipment, no certification necessary.
Connection
- TOP68 connection head
Ingress protection
- IP 68
Additional certifications
- Biocompatibility validated acc. to ISO 10993-5 USP (current version).
- TÜV certificate for pressure resistance 16 bar, min. triple overpressure safety.
- Chemical Industry
- Pulp & Paper Industry
- Power Plants (e.g. Flue Gas Washers, Boiler Feed Water)
- Incineration Plants
- Water Treatment
