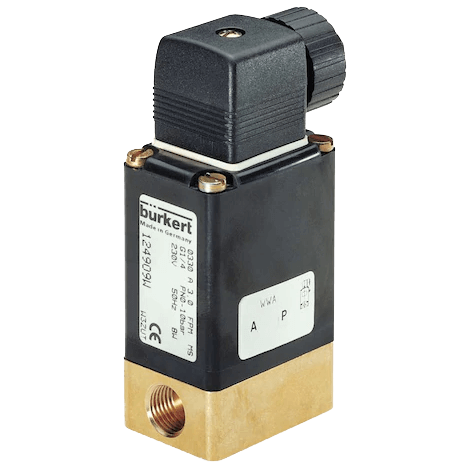

0330 Ex Direct-Acting 2/2 or 3/2-Way Pivoted Armature Valve
Brand: Burkert Fluid Control Systems
The 0330 valve is a direct-acting, media-separated pivoted armature valve. It is available in 3/2- and 2/2-way versions. As a 3/2-way version, it can be used as a distributor or mixing valve.
Various diaphragm material combinations and methods of operation are available depending on the application.
The standard brass housing satisfies all European drinking water requirements. Stainless steel (316), PVDF, and polypropylene housing versions complete the offering. The solenoid coils are moulded with a chemically resistant epoxy.
The 0330 is equipped with manual override for commissioning and testing. For reduced energy requirements all coils can be delivered with electronic power reduction or as an impulse version.
The switching status can be indicated with position feedback as a binary or NAMUR signal. In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65/67 - in combination with a stainless steel or plastic housing NEMA 250 Category 4X.
Features- Direct-acting, media-separated valve with diameter of up to DN 5
- Maintenance-free pivoted armature technology
- Vibration-proof, block screwed coil system
- Suitable for aggressive alkaline and acidic solutions
- Service-friendly, robust manual operation
- Explosion proof versions
1 - 12 of 377 Part Numbers
304 531
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Standard
- Feedback - No
304 531 CF15
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Standard
- Feedback - Coil with Intrinsically Safe Proximity Switches (PTB 00 ATEX 2048X) Instead of Manual Override
304 531 NA01
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Increased Purity & Hermetic Requirements & Vacuum Version
- Feedback - No
304 531 NA01 CF15
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Increased Purity & Hermetic Requirements & Vacuum Version
- Feedback - Coil with Intrinsically Safe Proximity Switches (PTB 00 ATEX 2048X) Instead of Manual Override
304 531 NA02
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Vacuum Version
- Feedback - No
304 531 NA02 CF15
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Vacuum Version
- Feedback - Coil with Intrinsically Safe Proximity Switches (PTB 00 ATEX 2048X) Instead of Manual Override
304 531 NA03
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Increased Purity & Hermetic Requirements
- Feedback - No
304 531 NA03 CF15
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Increased Purity & Hermetic Requirements
- Feedback - Coil with Intrinsically Safe Proximity Switches (PTB 00 ATEX 2048X) Instead of Manual Override
304 531 NL02
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Oxygen Versions
- Feedback - No
304 531 NL02 CF15
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Oxygen Versions
- Feedback - Coil with Intrinsically Safe Proximity Switches (PTB 00 ATEX 2048X) Instead of Manual Override
304 531 NL50/NL05
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Increased Purity Requirements Oil, Grease & Silicone-Free
- Feedback - No
304 531 NL50/NL05 CF15
- Circuit Function / Orifice - 3/2-Way Valve, Direct-Acting, When De-Energised Port A Exhausted / 3 mm
- Seal Material / Housing or Seat Material - NBR / Mild Steel
- Electrical Connection - Terminal Box
- Voltage / Frequency - 24 V / UC
- Options - Increased Purity Requirements Oil, Grease & Silicone-Free
- Feedback - Coil with Intrinsically Safe Proximity Switches (PTB 00 ATEX 2048X) Instead of Manual Override
1 - 12 of 377 Part Numbers
Specifications
Actuator Type
- Direct-Acting
Ambient Temperature Range
- Maximum
Approvals & Certifications
- EPS 16-ATEX-1 111 X, II 2 G Ex Mb IIC T4 Gb, II 2 D EX Mb IIIC T130° Db
- IECEx EPS 16.0049X, II 2 G Ex Mb IIC T4 Gb, II 2 D EX Mb IIIC T130° Db
- NAMUR
BSP Connection
- G 1/4" Female
- G 1/8" Female
- 1/4" BSPT Female
Consumption
- Power Consumption (Inrush): 40 W
- Power Consumption (Operation): 3 W
Cycling Rate
- Variant 1: Max.
- Variant 2: Max.
Duty Cycle
- 100%
Electrical Connectors
- Cable Gland: 1/2"-14 NPT
- Cable Gland: M20 x 1.5
- Moulded Cable
- Terminal Box without Safety Fuse
Electrical Contacts
- Normally Closed
- Normally Open
Enclosure, Body Material
- 316 Stainless Steel, 1.4401
- Brass
- Metal
- Plastic
- Polypropylene (PP)
- PVDF (Polyvinylfluoride)
Environmental Protection
- Explosion-proof
- IP65
- IP66
- IP67
- NEMA 250 4X
- Vibration-Proof
Flow Rate
- Water: 0.08 to 0.29 Kv (m³/hour) - Metal Body
- Water: 0.13 to 0.40 Kv (m³/hour) - Plastic Body
Insulation
- Coil Insulation Class H
Mounting Position
- Preferably with Actuator Upright
NPT Connection
- 1/4" NPT Female
Orifice Size
- 0.078" to 0.157" (2 to 4 mm)
Override
- Manual Override
Pressure Range
- psi: 0 to 232.1 (kPa: 0 to 1,600, bar: 0 to 16) - Metal Body, Plastic Body
- Vacuum - psi: -14.21 to 145 (kPa: -98 to 1,000, bar: -0.98 to 10)
Process Temperature
- 0° to 80° C (32° to 176° F) for Body Material Brass or Stainless Steel (NBR), PP or PVDF (NBR, FKM)
- EPDM: -30° to 80° C (-22° to 176° F) for Body Material PP or PVDF
- EPDM: -30° to 90° C (-22° to 194° F) for Body Material Brass or Stainless Steel
- FFKM: 5° to 80° C (41° to 176° F) for Body Material PP or PVDF
- FFKM: 5° to 90° C (41° to 194° F) for Body Material Brass or Stainless Steel
- FKM: 0° to 90° C (32° to 194° F) for Body Material Brass or Stainless Steel
Response Time
- Closing: 40 ms (Pressure Drop 100 to 10 %)
- Opening: 30 ms (Pressure Rise 0 to 90 %)
Seat / Seal Material
- Seal: EPDM (Medium: Alkalis, Acids to Medium Concentrations, Alkaline Washing & Bleaching Lyes)
- Seal: FFKM (Medium: Aggressive Mediums, Hot Air, Hot Oils)
- Seal: FKM (Medium: Oxydizing Acids & Substances, Hot Oils with Additives, Salt Solutions, Waste Gases, Oxygen)
- Seal: NBR (Medium: Neutral Medium Such as Compressed Air, Town Gas, Water, Hydraulic Oil, Oils & Fats without Additives, Oxygen)
Solenoid Type
- 2/2-Way
- 3/2-Way
Tolerance
- Voltage Tolerance: ± 10 %
Viscosity
- Maximum
Voltage
- 24-230 Vac/dc
