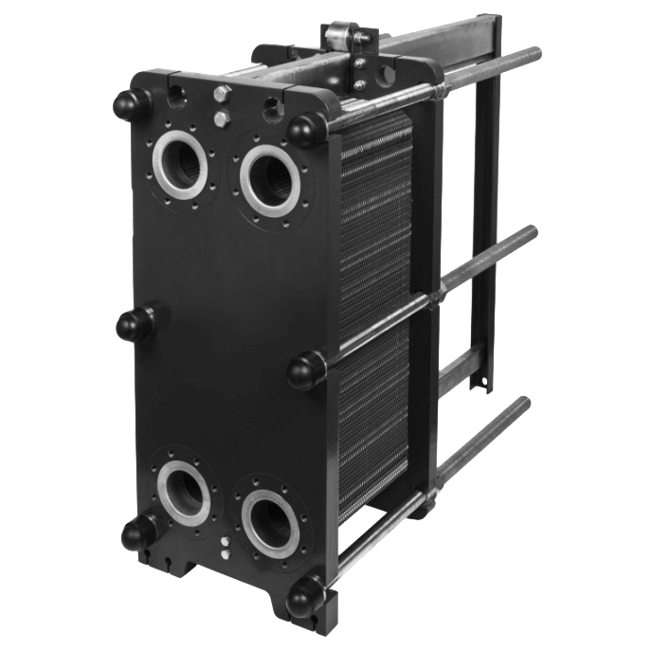

XGF 100 Plate Heat Exchanger
Brand: DanfossDanfoss XGF plate heat exchanger has been developed specifically for District Energy applications like District Heating and Cooling ensuring you a reliable high efficient plate heat exchanger fulfilling your needs.
Features- Improved plate alignment system
- Glue free gaskets with a robust attachment system
- Enforced distribution area
- Optimized distribution area ensures high efficiency and reduced risk of fouling
1 - 12 of 77 Part Numbers
004H7001
- Type - 100-034H
- Number of Plates - 50
004H7002
- Type - 100-034H
- Number of Plates - 60
004H7003
- Type - 100-034H
- Number of Plates - 70
004H7004
- Type - 100-034H
- Number of Plates - 80
004H7005
- Type - 100-034H
- Number of Plates - 90
004H7006
- Type - 100-034H
- Number of Plates - 100
004H7007
- Type - 100-034H
- Number of Plates - 110
004H7008
- Type - 100-034H
- Number of Plates - 120
004H7009
- Type - 100-034H
- Number of Plates - 130
004H7010
- Type - 100-034H
- Number of Plates - 140
004H7011
- Type - 100-034H
- Number of Plates - 150
004H7012
- Type - 100-034M
- Number of Plates - 50
1 - 12 of 77 Part Numbers
Specifications
Brand
Applications
- Heating & Cooling
Connection Material
- 316 Stainless Steel, 1.4401 - Liners in Connections
Flange Size - 4” (DN 100)
- 4" (DN 100) - PN 16
Gasket Material
- EPDM
Materials of Construction
- Plate & Liners in Connection: 316 Stainless Steel, 1.4401
Media
- Circulation Water, Glycolic Water up to 50 %
Mounting Position
- Vertical
Operating Pressure
- psi: 232 (kPa: 1,600, bar: 16)
Operating Temperature
- -10° to 150° C (14° to 302° F)
- Heating & Cooling
