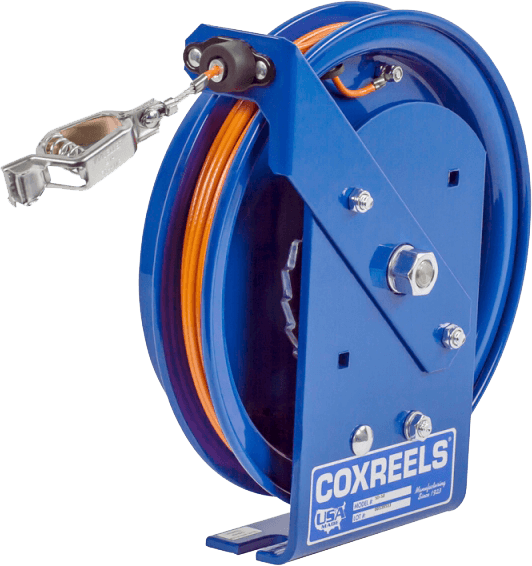

Spring Driven Reels | SD Series
Brand: COXREELS®COXREELS® SD Series "Static Discharge" cable reels are built heavy duty and designed for long lasting performance.
They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion.
Swivel
- Available with 7 strand x 7 wire galvanized steel or stainless steel 3/32" cable
- High visibility orange vinyl cable cover (O.D.= 5/32" with cable cover)
- Includes cable, ball stop & 50 Amp grounding clamp (100 Amp copper grounding clamp available, consult factory)
Design & Structure
- Compact static discharge cable reel available in spring rewind or direct hand crank retraction
- Commonly paired with fuel reels & used in combustible environment for grounding purposes
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Solid one piece, heavy gauge 1/4" steel base for maximum stability
- 1" solid steel axle & lubricated precision bearings for smooth rotation
- Bottom of base is free from powder coating to ensure maximum metal to metal contact for grounding
Retract
- Enclosed factory tuned & matched cartridge-style spring motor
- Non corrosive stainless steel spring, pawl & zinc plated ratchet
- Multi-position non-sparking lock ratchet mechanism secures cable at desired length
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2 - year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- Cartridge Motor - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- Multi - Position Guide Arm - Versatile aluminum guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Steel Cable - 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
- Other Features Include - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber cable stop, 50 amp grounding clamp, and sturdy permanently lubricated precision bearings.
Specifications
Brand
Cable Length
- 35 ft
- 50 ft
- 75'
- 100 ft
Cable Type
- Galvanized
- Stainless Steel
Options
- EZ - Coil
- Cable
