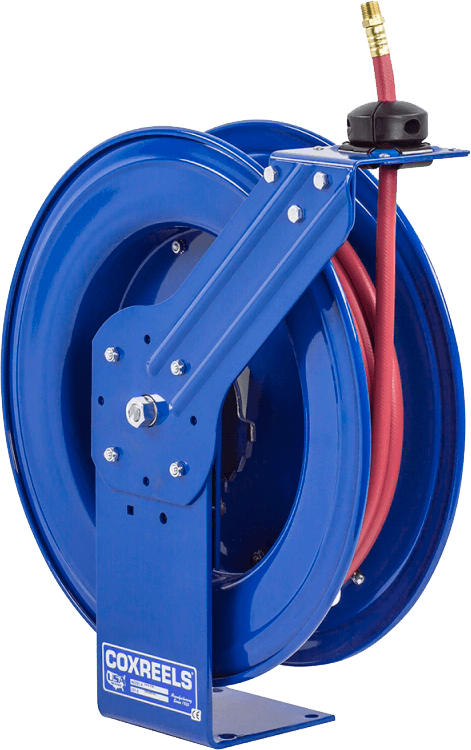

Spring Driven Reels | SH Series
Brand: COXREELS®COXREELS® SH Series “Super Hub™” spring driven hose reels, like the P Series, have a long history of dependable performance.
The larger chassis and frame accommodate longer lengths and larger diameters of hose.
Coxreels’ original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
Swivel
- External fluid path with machined from solid brass 90º full-flow NPT swivel inlet (Zinc plated steel swivel on HP models)
- Swivel Seals: NITRILE
Design & Structure
- Guide arm adjusts to wall, floor, vehicle & overhead positions.
- Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability.
- 1" solid steel axle and lubricated precision bearings for smooth rotation.
Retract
- Enclosed factory tuned and matched cartridge-style spring motor.
- Non-corrosive stainless steel spring, pawl and zinc plated ratchet.
- Multi-position lock ratchet mechanism secures hose at desired length.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2 - year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- Swivel - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™ dual axle support system.
- Multi - Position Guide Arm - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Other Features Include - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
Brand
Inside Diameter
- 1/4"
- 3/8"
- 1/2"
- 3/4'
PSI
- Low Pressure - Up to 1000
- Medium Pressure - 1000-4000
- High Pressure - 4000 & Up
Hose Length
- 60 ft
- 50 ft
- 75'
- 100 ft
- 40 ft
- 35 ft
- 25 ft
Options
- Hose
- EZ - Coil
