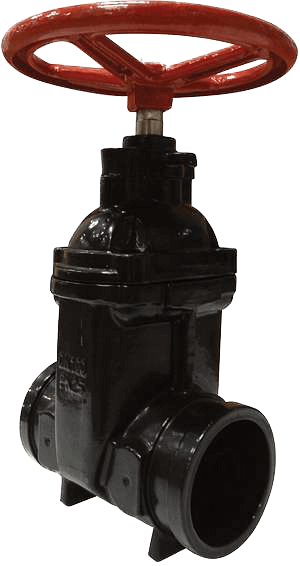

Series 7S2 Shouldered Gate Valve for Shouldered Steel Pipe
Brand: Victaulic CompanyVictaulic Series 7S2 shouldered gate valves are manufactured in accordance with AS-2638.2 and are designed for service up to 25 bar.
The gate valves feature only three internal parts making maintenance simple. The gate is rubber encapsulated for true compression sealing and reduction of wear and jamming.
Full bore is maintained for a smooth inner flow path. Victaulic Shouldered Gate Valves are only available with a Non-Rising Stem (NRS) operator.
When installed using Victaulic Style SC77 installation-ready shouldered couplings, the shouldered gate valve assembly is up to 1/3 less weight then a flanged valve.
Features- Manufactured in accordance with AS-2638.2 and designed for service up to 25 bar
- Features only three internal parts making maintenance simple
- The gate is rubber encapsulated for true compression sealing and reduction of wear and jamming. Full bore is maintained for a smooth inner flow path.
- Only available with a Non-Rising Stem (NRS) operator
- When installed using Victaulic Style SC77 installation-ready™ shouldered couplings, the shouldered gate valve assembly is up to 1/3 less weight then a flanged valve
Specifications
Brand
Handwheel
- Ductile Iron conforming to ASTM A-536 Grade 65-45-12
Body Bolts
- Plated Steel w/ Plastic Covers conforming to ASTM A-307
Body
- Ductile Iron conforming to ASTM A536 Grade 65-45-12
Body Gasket
- EPDM conforming to ASTM D-2000
Bonnet
- Ductile Iron conforming to ASTM A-536 Grade 65-45-12
Bonnet/Body Coating
- Fusion bonded Epoxy coating
Gate
- Ductile Iron conforming to ASTM A-536 65-45-12, EPDM coated ASTM D-2000
Gate Stem Nut
- Bronze, conforming to ASTM B-62
Stem
- Stainless Steel, conforming to ASTM A276 431SS
O-Ring Seals
- EPDM, ASTM D-2000
