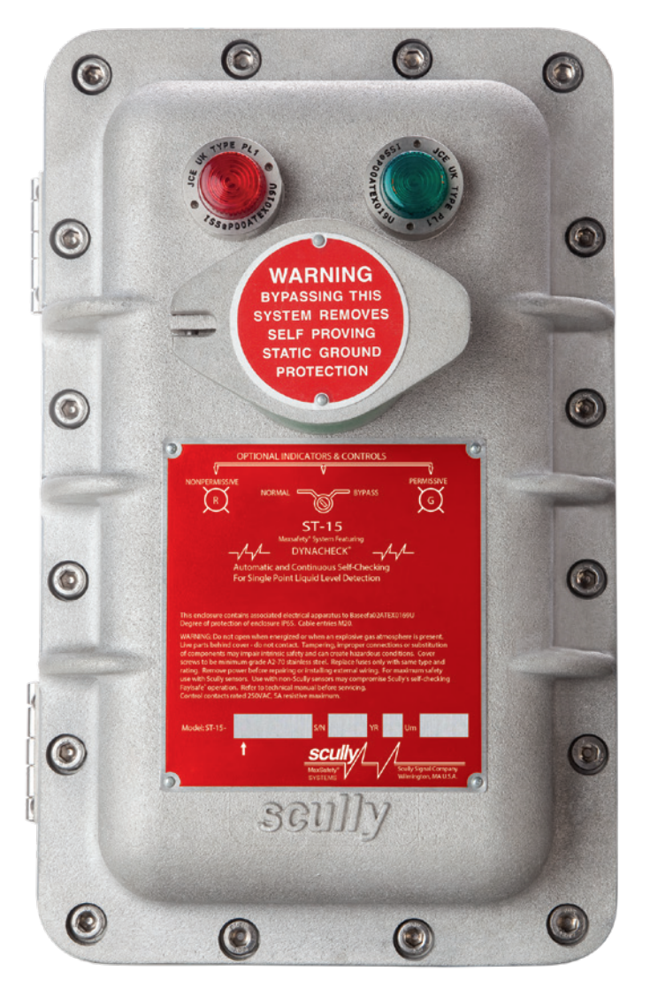

ST-15C Single Point Overfill Prevention Controller
Brand: Scully Signal CompanyThe Scully single point overfill prevention controllers feature two-wire optic or thermistor sensing. They are mounted at a loading rack or fill station for connection to a single compartment tank vehicle.
For additional ground proving options, the system works in conjunction with the Scully Groundhog Self-Proving Ground Verification System.
Features- Maximum safety with Dynacheck® automatic and continuous self-checking circuitry
- Will not permit loading under any fault or wet sensor conditions
- Signals for automatic shut-off of product flow within a half-second of detecting an overfill condition
- Ideal overfill prevention for refuelers, rail tank cars, tank trucks, chemical trailers and other one compartment vehicles
- 30 years of proven, dependable performance
- Easy connection to vehicles with versatile high impact plug and cable units
- Approved by Factory Mutual (FM), the Canadian Standards Association (CSA), and ATEX.
1 - 12 of 13 Part Numbers

08360

08631

08633

08656

08677NV

09162

09420

09421

26022

26055

26343

26350
1 - 12 of 13 Part Numbers
Specifications
Brand
Certifications & Approvals
- FM
- CSA
- ATEX
Response Time
- Turn-on: 6 to 30 s
- Shut-down: 0.5 s Max.
Power Requirement
- 105-130 Vac, 50/60 Hz, 20 W Max.
- 210-250 Vac, 50/60 Hz, 20 W Max.
Connection
- Provided by Internal Terminal Strips
Output Control
- One Normally Open Volt Free Contact, Rated 250 Vac 5 A Resistive
- Energized When the Sensor Is Dry
Output Control Fuse
- Internal 5 A
Enclosure
- Explosion-proof, Weathertight
- Corrosion Inhibiting Epoxy Paint Optional
Indicator Lamp
- Red = Power-On/Non-Permit
- Green = Permit
Weight
- 12.7 kg (28 lb) E, EL, ELK Units
- 23 kg (50 lb) ELKPB
