Add the Meter, Turbine, 16 Inch, Sentry Series, Model K2DL - Spare Parts to your store or catalog
Book Your Demo and See How
or create your store

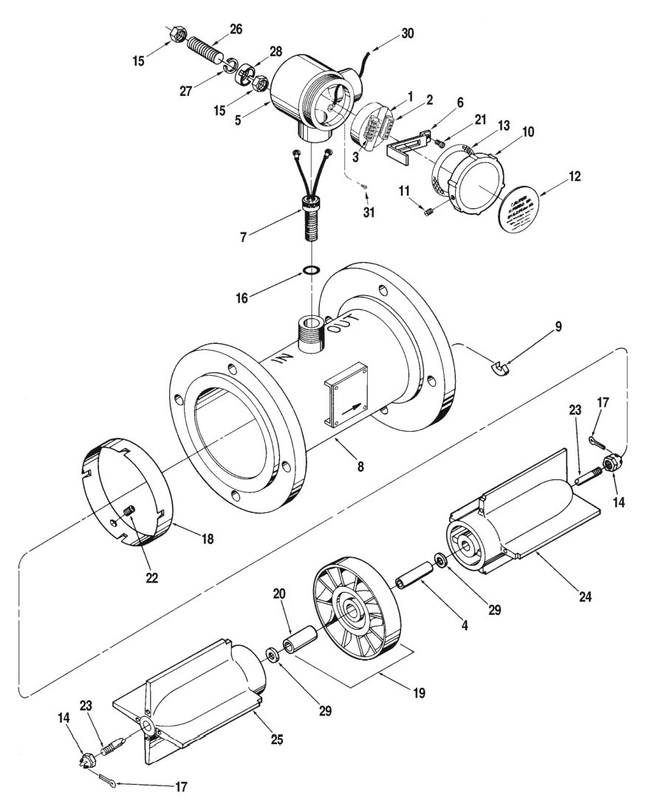

Meter, Turbine, 16 Inch, Sentry Series, Model K2DL - Spare Parts.jpg

Meter, Turbine, 16 Inch, Sentry Series, Model K2DL - Spare Parts

Brand: TechnipFMC
Add Product to My Catalog

The Smith Meter® Sentry™ Series Turbine Meter is a rimmed, rotor-type meter with helical blades.

Sentry Series Turbine Meters utilize both an upstream and downstream stator and have tungsten carbide bearings with a hydro-dynamic thrust balance system.

They provide highly accurate measurement required for custody transfer of petroleum liquids such as crude oil and refined products in larger pipelines.
Features
  • Rimmed rotor for durability and high resolution pulse output
  • Helical blades for a streamlined flow pattern less susceptible to cavitation
  • All Stainless Steel wetted parts for corrosion-free service
  • Tungsten carbide bearings provide long life on low lubricity liquids
  • Hydrodynamic thrust balance system to minimize friction and wear on thrust bearings which allows for long service life and high accuracy
  • NACE Compliance to MR0175/ISO 15156-1

1 - 12 of 41 Part Numbers
006110-002
006110-002
Screw, #10-32 x ¼" (UL/CSA version only) - Item 31
006621-001
006621-001
Washer, ¼" Lock (ATEX version only) - Item 27
006738-001
006738-001
Pin, Cotter - Item 17
  • Recommended Stock
009544-401
009544-401
Screw, Machine, #10-32 x ¼" - Item 21
013403-200
013403-200
Gasket, Cover - Item 13
  • Recommended Stock
060060-001
060060-001
Nut, ¼"-20 (ATEX version only) - Item 15
230663-101
230663-101
Preamplifier: PA-6, 12 to 24 VDC - Item 1
  • Recommended Stock
540244-100
540244-100
Coil, Pickup: Mating Connector with Leads (High Temperature Version) - Item 7
  • Recommended Stock
542272-212
542272-212
Stator, Upstream: Unidirectional - Item 25
542273-112
542273-112
Stator, Downstream - Item 24
542273-112
542273-112
Stator, Upstream: Bidirectional - Item 25
542278-201
542278-201
Shaft, Rotor - Item 23
1 - 12 of 41 Part Numbers

Specifications

Brand

Linearity

  • ± 0.15 % linearity over normal flow range
  • ± 0.10 % linearity over 5:1 flow range
  • ± 0.07 % linearity over 5:1 flow range

Repeatability

  • Per API MPMS or OIML R-117-1

Overspeed

  • 130 % of maximum flow rate for 5 % duty cycle

End Connections

  • Class 150, 300, 600, ASME B16.5, 125-250 AARH finish raised face (RF) flanges
  • Consult factory for higher working pressure or other types of flanges

Weights and Measures

  • PTB Issued OIML R117-1 Test Report
  • European Union: MID - Measuring Instrument Directive, MID 2014/32/EU
  • Consult Factory for others

Pressure Safety Requirements

  • European Union: PED - Pressure Equipment Directive, PED 2014/68/EU
  • CRN - Canadian Registration Number - Consult Factory

Electromagnetic Compatibility

  • European Union: EMC Compliance by Council Directive EMC Directive 2014/30/EU
  • EN 61326-1: Electrical equipment for measurement, controland laboratory use

Documentation

Parts List
