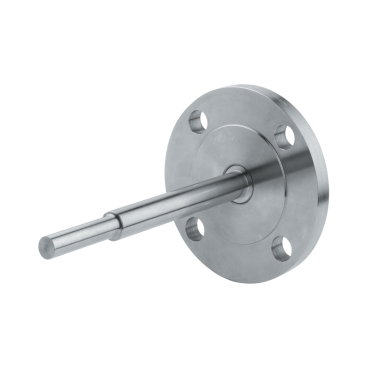

W92 Series Bar-Stock Thermowell

Brand: Nuova Fima

Thermowells are used to to protect the measuring instrument from corrosion, high pressure or high fluid velocity and to allow the measuring instrument removal for recalibration or replacement without affecting the process system.

The W92 series includes bar-stock thermowells with flanged process connection and they are suitable for heavy work conditions.

These thermowells have a stepped-shank immersion length for a better process temperature measuring sensibility.

Specifications

Brand

Material

  • AISI 316 Stainless Steel Bar-Stock
  • AISI 316 Stainless Steel Flange
  • AISI 316L Stainless Steel Bar-Stock
  • ASTM A 105 St. St Flange

Nominal Pressure

  • 1450 psi @ 752° F Max. (100 bar @ 400° C)

Process Connection

  • Plain Flange as Per UNI-DIN or ASME B16.5

Process Fluid Temperature

  • -328° to +1112° F (-200° to +600° C)

Special Material

  • Alloy 625
  • Alloy 825 or Inconel
  • Duplex SAF 2205
  • Duplex SAF 2507 Flange
  • Hastelloy C-276
  • Monel 400

Total Length

  • Maximum
