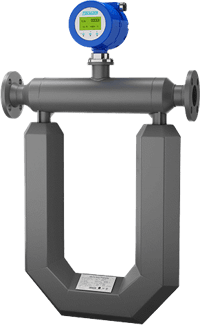

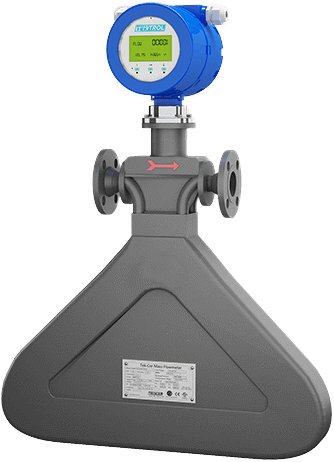

Tek-Cor 1100A Series Coriolis Flow Meter

Brand: Tek-Trol Technology Solutions

Our range of Coriolis mass flow meters is designed to suit your need to measure almost any fluid, across any application. Built on the Coriolis principle, these meters measure the mass of the fluids directly, rather than volume. This means they do not require compensations for factors such as temperature and pressure which impact volume and in turn, impact the accuracy of measurement.

Our Coriolis flow meter consists of two parallel tubes that are made to oscillate using a magnet. These oscillations are recorded by sensors fitted at the inlet and outlet of each tube. In a no-flow state, the oscillations are synchronized, i.e. in phase with each other, since there is no mass exerting any force on the tubes. On the other hand, any fluid, or gas flowing through the tubes generates Coriolis forces, causing the tubes to twist in proportion to the mass flow rate of the medium.

The magnitude of this twisting is measured by the sensors as a phase shift between the inlet and outlet of the tubes; this phase shift is used to measure the mass flow rate of the medium.
Features
  • Suitable for aggressive and contaminated media.
  • Measurement and Display of percent water-cut for oil or water mixtures.
  • High Phase Shift Frequency.
  • Measuring tubes vibrated at natural frequency.
  • Short response time.
  • No moving parts.
  • Full Sensor Diagnostics.
  • Measures mass flow, density, temperature, and volume flow with high accuracy.
  • OLED with 2 line display.
  • Multiple Flange (150# To 900#) and Process Connections.
  • Net Oil Measurement.
  • Density accuracy upto 0.001 g/cm3 (Consult Factory for better).
  • Suitable for harsh conditions.
  • Process Temp Ranges From -200 to 300°F.
  • Ul Class I Div I and NTEP Approved.
  • Certified for use in Fiscal and Custody Transfer Applications.

Specifications

Accuracy

  • ± 0.05 %
  • ± 0.1 %
  • ± 0.2 %
  • ± 0.5 %

Density Accuracy

  • 0.001 g/cm³ (Consult Factory for Better)

Repeatability

  • ± 0.05 % (for 0.1 % accuracy)
  • ± 0.1 % (for 0.2 % accuracy)
  • ± 0.25 % (for 0.5 % accuracy)
  • ± 0.05 % (for 0.05 % accuracy)

Sensor Type

  • Standard
  • U Tube
  • Nano
  • Super Bend
  • Straight Tube
  • Dual Path

Process Media

  • Gas
  • Liquid

Transmitter

  • Digital type/Analog type

Power Supply

  • 18-28 Vdc, 85-220 Vac

Maximum Pressure

  • For 3/8” to 1/2” - 3600 psi (25 MPa)
  • For 1” 1500 psi (10 MPa)
  • For 1-1/2” to 2” 1500 psi (10 MPa)
  • For 3” to 4” 900 psi (6MPa)
  • For 6” to 24” 580 psi (4 mpa)

Signal Output

  • 4-20 mA and Pulse
  • Optional: HART, Modbus RS-485 or Ethernet

Process Connections

  • DIN
  • ANSI Flanges
  • NPT
  • Flare
  • Tri-Clamp

Electronics

  • Direct Mount
  • Remote Mount

Diagnostic Functions

  • Reset Totalizer

Graphic Display

  • OLED

Operating Elements

  • 3 optical keys for operator

Additional Features

  • Low Flow Cut-off
  • Oil and Water Content Analysis
  • Zero Calibration
  • Flow Calibration
  • Long-term Stability
  • Zero Point Adjustment
  • Conforms IEC 61362 (Industrial) EMC Directive
  • Useful for all type of sensors i.e. U-Tube, Nano, Standard

Temperature Range

  • Direct Mount: -60° F to 200° F (-50° C to 125° C)
  • Remote Mount: -300° F to 400° F (-180° C to 200° C)
