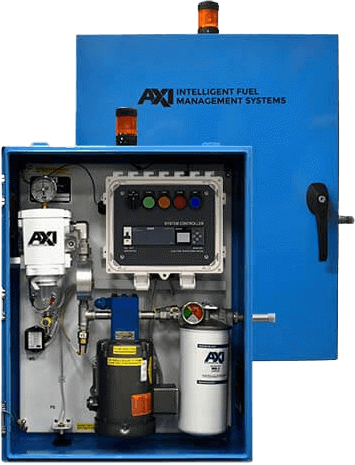

STS 6000 SX-F Fuel Maintenance System
Brand: AXI InternationalThe STS 6000 SX-F is a programmable, fully automated, fuel maintenance system that removes water, sludge, and other contaminants from fuel storage tanks through routine filtration.
The system’s NEMA 4 rated enclosure allows for both outdoor and indoor installations by protecting the system from windblown dust and rain, hose directed water, and ice formations.
With a 2.5 GPM flow rate, the STS 6000 SX-F can polish up to 1,200 gallons (4,543 liters) of fuel in a runtime of 8-hours. Robust system upgrade options are available for this system and are outlined below.
Features- Automatically removes contaminants from fuel storage tanks through user-scheduled filtration (2.5 GPM flow rate)
- Notifies users of routine maintenance or system faults such as needed filters changes or flow restrictions
- NEMA 4 rated enclosure for indoor and outdoor installations
- Drip basin with built-in leak detection
- Field connections for external integrations such as remote monitoring and system shutdown capabilities
- Robust set of available upgrade options
Specifications
Brand
Nominal Flow Rate
- 2.5 GPM/150 GPH (9.5 LPM/567.8 LPH)
Primary Filter
- 10 or 30μ Particulate or 60μ Stainless Steel Screen with Centrifugal Water Separator
Secondary Filter
- 3, 10 or 25μ Fine Filter or 3, 10μ Water Block
Fuel Conditioner
- LG-X 500 Inline Magnetic Conditioner
Pump
- 1/3 HP Spur Gear Pump
System Controller
- SFC50 Smart Filtration Controller with Safety and Alarm Features
Power
- 120V/60Hz/1Ph or 230V/50Hz/1Ph
Plumbing
- Black Iron
Ports
- 1/2” NPT In, 1/2” NTP Out
Enclosure
- NEMA 4 Rated Powder Coated or NEMA 4X Rated Stainless Steel
Dimensions
- ≈ 30” x 24“ x 10” (76 x 61 x 25 cm) (H x W x D)
Weight
- ≈ 190 lbs (86.2 kg)
