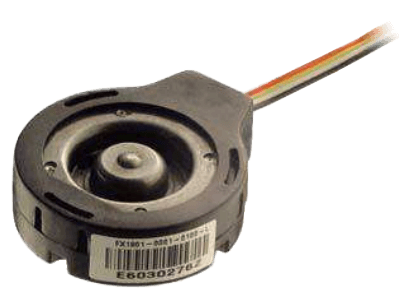

FX19 OEM Compression Load Cell
Brand: American Sensor Technologies IncThe FX1901 units are intended for OEM use in laboratory, hospital or consumer product applications, establishing a breakthrough price/performance value for compression load cells.
The FX1901 is a 1% load cell device with full scale ranges of 10, 25, 50 or 100 and 200 lbf compression. This new, low-cost technology enables force sensing in a whole new class of "smart" consumer and medical products.
Features- Small
- Low Noise
- Robust: High Over-Range
- High Reliability
- mV Output: 20 mV/V Nominal
- Low Deflection
- Fast
- Essentially Unlimited Cycle Life
Specifications
Accuracy
- ± 1 % of Full Scale
Approvals & Certifications
- CE
- RoHS
Excitation Voltage
- 5 Vdc
Humidity
- 0 to 90 % RH
Hysteresis
- ± 0.80 % of Span
Insulation Resistance
- 50 MΩ at 500 Vdc
Loop Resistance
- 2.2 kΩ - Output Resistance
- 3 kΩ - Input Resistance
- 464 ohms - Span Compensation Resistor
Operating Temperature
- 0° to 50° C (32° to 122° F)
Sensitivity
- ± 0.05 % of FSO/°C - Thermal Sensitivity Shift
Span Effect
- ± 0.8 % of FSO - Span Repeat
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Thermal Drift
- ± 0.05 % of FSO/°C - Thermal Zero Shift
Zero Offset
- ± 15 mV/V
- Assembly Forces
- Physical Therapy Devices
- Patient Weight
- Hand Tool Forces
- Chiropractic and Exercise Equipment
- Consumables Monitoring: Copy Equipment and Vending systems
- Appliance Payload Monitoring: Washers, Dryers, Water Weight, Extraction Efficiency
- Appliance Unbalance Monitoring
