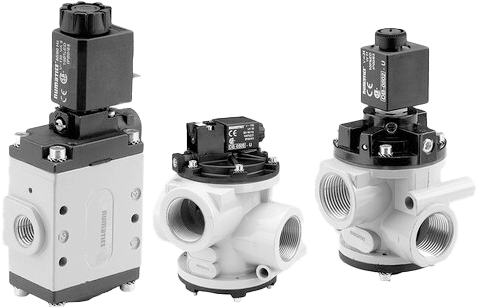

ASCO Numatics NG Series Poppet Valves
Brand: ASCOThe ASCO Numatics Series NG poppet valves are designed for compressed air and vacuum service.
The high-flow valves are ideal for single-acting cylinders, air bellows, and vacuum material handling. Their rugged design incorporates a polyurethane diaphragm for extended service life.
Features- Solenoid pilot actuated with 3-way design
- Internal vacuum pilot operation
- AC and DC voltages are available
- Operates with lubricated or unlubricated air
Specifications
Brand
Flow
- From 0.5 Cv to 1.0 Cv, from 1.0 Cv to 2.0 Cv, from 2.0 Cv to 6.0 Cv, from 6.0 Cv to 14.0 Cv, over 14.0 Cv
Function
- 2-Way - 2/2 Normally Closed, 3-Way - 3/2 Normally Closed, 3-Way - 3/2 Normally Open
Media
- Vacuum
Operating Environment
- Indoor, Outdoor
Pipe / Port Size
- 1/8, 1/4, 1/2, 3/8, 3/4, 1
Port Type
- Female NPT
Standards & Regulations
- CSA
Valve Actuation
- Pneumatic - Air Pilot, Solenoid - Air Pilot
