Manzel GBL 7500 Compressor Lubrication Pump
Brand: Graco, IncGraco offers three vigorously tested models engineered for long-life and maximum flexibility for easy system integration.
Each model has been improved to perform in best-practice applications for a durable solution that is hard to beat. Product offering includes Suction, Gravity, Pressure and Alarm pumps.
Features- Mechanically driven from camshaft in reservoir.
- Adjustable from 1 to 27 drops per stroke and develop pressures up to 7,500 psi.
- Rugged construction for high quality performance and durability with easy to adjust pump output.
- 1/4" NPT inlet to improve flow in high viscosity, cold environments.
- Double Ball Outlet Check reduces ball travel.
- Improved O-ring seals to eliminate leak paths.
- Patent pending Built-in-Socket spreads force evenly over piston tip to avoid bending and wear for long piston and rocker life.
- Ball bearing roller has superior rotation to help protect camshaft from damage. Larger diameter roller spreads load pressure to reduce wear and improve pump life.
Specifications
Brand
Alarm Pump
- 1.4 PMa, 14 bar
- 2.18 kg
All 1/4” Piston Models
- 41.4 MPa, 414 bar
All 3/16” Piston Models
- 51.7 MPa, 517 bar
All 3/8” Piston Models
- 24.1 MPa, 241 bar
Dimensions
- See Instruction Manual.
Gravity Fed Models
- [{"id": " DWJmPM","value": "1/8", - 27 Female NPT","title": "1/8", - 27 Female NPT","index": 1}]
Gravity Models
- 1.22 kg
Outlet Size (Suction, Gravity, Pressure Fed Models)
- [{"id": "lmJzbx","value": "1/8", - 27 Female NPT","title": "1/8", - 27 Female NPT","index": 1}]

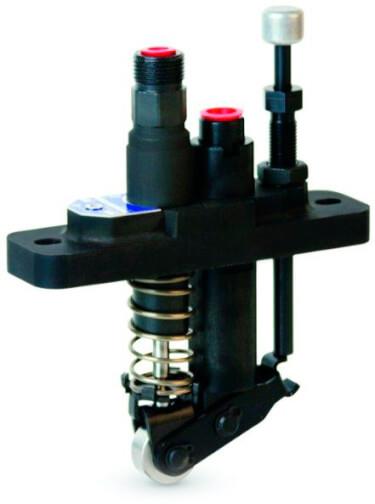

Pressure Fed Models
- 1/4-18 NPT Female
Pressure Models
- 1.22 kg

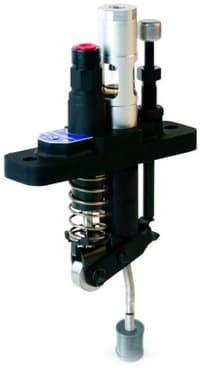

Suction Models
- 1.18 kg
Temperature Rating
- -29° to 60° C
Wetted Parts
- Carbon Steel, Stainless Steel, Aluminum, PTFE, Fluoroelastomer, Pyrex
Documentation
Document
- 3A2257E GBL 7500 Box Lubricator Pump or GBL Shaft Rotation Low Le Deutsch pdf 1.8 MB
- 3A2257E GBL 7500 Box Lubricator Pump or GBL Shaft Rotation Low Le En pdf 1.6 MB
- 3A2257E GBL 7500 Box Lubricator Pump or GBL Shaft Rotation Low Le Italiano pdf 1.7 MB
- 3A2257E GBL 7500 Box Lubricator Pump or GBL Shaft Rotation Low Le Russian pdf 1.7 MB
- 3A2257E GBL 7500 Box Lubricator Pump or GBL Shaft Rotation Low Le 日本語 pdf 1.9 MB
- Graco ILE Buyer s Guide En pdf 9.9 MB
- Graco Manzel Lubrication Equipment Flyer En pdf 350 KB
- L51025EN Manzel Model 88 Pump Flyer En pdf 287 KB
- Manzel GBL 7500 Flyer Deutsch pdf 475 KB
- Manzel GBL 7500 Flyer En pdf 305 KB
- Manzel GBL 7500 Flyer Español pdf 474 KB
- Manzel GBL 7500 Flyer French pdf 474 KB
- Manzel GBL 7500 Flyer Italiano pdf 472 KB
- Manzel GBL 7500 Flyer Russian pdf 490 KB
Instructions
- 312147B Modular Box Lubricators Instructions Parts English En pdf 497 KB
- 3A2100G Modular Box Lubricator Instructions English Deutsch pdf 2.9 MB
- 3A2100G Modular Box Lubricator Instructions English En pdf 2.1 MB
- 3A2100G Modular Box Lubricator Instructions English Italiano pdf 2.8 MB
- 3A2100G Modular Box Lubricator Instructions English Japanese pdf 2.0 MB
- 3A2100G Modular Box Lubricator Instructions English Russian pdf 3.0 MB
