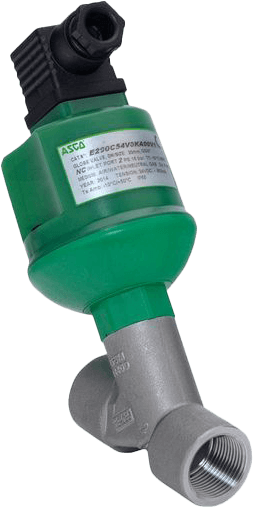

ASCO 290C Series Motorised Proportional Valves
Brand: ASCOThe ASCO 290C Series is line of fast-closing motorized proportional valves with high-flow capabilities and an anti-water hammer design.
The robust, reliable valves are suitable for a variety of applications including sterilizers, wine production (thermoregulation), food processing, car wash equipment, hydrotherapy, water treatment, industrial heating and cooling equipment, and on-board vehicle equipment.
Features- Easy to use and install with auto-adjustment and auto-initialisation from the first time its powered up
- LED indicators for valve status display
- Fail-close position option
- Less than 2 W holding phase/set point position
- Valve tight at closing position (FCI 70-2 class V)
- Proportional motorised valve 2/2 is available
Specifications
Brand
Body Material
- Stainless Steel
Function
- 2/2 Normally Closed
Maximum Differential, Maximum Operating Pressure
- Vacuum to 10.3 bar
Media
- Air, Inert Gas, Hot Water, Light Oil, Water, Steam, Vacuum, Aggressive Liquids & Gases, CO₂
Operating Environment
- Indoor, Outdoor
Pipe / Port Size
- 1/2, 3/8, 3/4, DN 15
Port Type
- G ISO 228 / 1-G BSPP, ISO 7 / 1 RP BSPT, Female NPT
Standards & Regulations
- IP65, RoHS
Valve Actuation
- Motorized, Motorised, Proportional
Voltage
- 24 DC, 24 AC, 24 to 120 AC/DC Voltage Ranging, 240 AC, 48 AC, 230 AC, 110 AC, 115 AC, 120 AC, 208 AC, 220 AC
