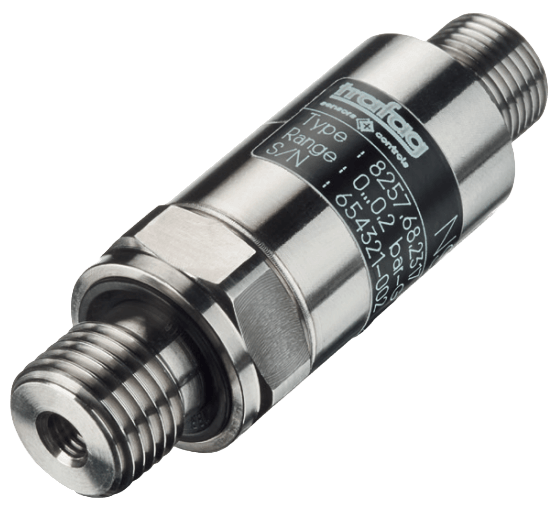

NSL 8257 Low Pressure Transmitter
Brand: Trafag Sensors & ControlsThe very compact NSL low pressure transmitter is the only pressure transmitter in the market with thin-film-on-steel membrane and pressure ranges down to 0 to 200 mbar.
This combination allows also for low pressure ranges accurate measurements with excellent long term stability.
Through the extraordinary high burst pressures 0 to 125 times nominal pressure the NSL is the first choice for critical applications.
Features- Smallest design
- Relative or absolute pressure measurement
- Excellent temperature resistance
- Improved vibration resistance
- Completely welded steel sensor system without additional seals
Specifications
Approvals & Certifications
- DNV
- EMC
- GL
- IEC Emission: EN 61000-6-4, Immunity: EN 61000-6-2
- RINA
BSP Connection
- G 1/4" Male
Enclosure, Body Material
- AISI 304 Stainless Steel 1.4301
Environmental Protection
- IP65
- IP67
NPT Connection
- 1/4" NPT Male
Output
- Output Signal: 0-10 Vdc
- Output Signal: 4-20 mA
Pressure Range
- bar: 0 to 2.5
- kPa: 0 to 250
- psi: 0 to 36.3
Wetted Materials
- Sensor, Pressure Connection: AISI 630 Stainless Steel (1.4542)
- Shipbuilding
- Engine Manufacturing
- Machine Tools
- Process Technology
- Water Treatment
- Test Benches
