Model ZPJ Large Thru Bore Rotary Pulse Generator
Brand: Red Lion Controls

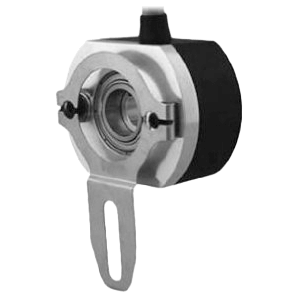

The Model ZPJ is a thru-bore encoder with a bore of 0.625" (15.875 mm).
Additional mounting kits are available to adapt it to both standard and metric shaft sizes.
This unit is ideal for applications requiring a miniature, high precision encoder, designed with all metal construction for years of trouble-free operation.
The ZPJ encoder has a flexible arm mount and blind hollow shaft.
It uses two set screws that are 90° apart to clamp the encoder's hub to the motor shaft.
The NPN Open Collector outputs are each current limited to 20 mA.
The outputs are standard quadrature with index, and are available in resolutions up to 2500 pulses per shaft revolution.
The quadrature separation is typically 90 electrical degrees.
Output A leads output B for clockwise rotation of the encoder shaft.
1 - 8 of 8 Part Numbers
ZPJ0060A
- Product - 0.625" Thru-Bore Rotary Pulse Generators
- PPR - 60
ZPJ0100A
- Product - 0.625" Thru-Bore Rotary Pulse Generators
- PPR - 100
ZPJ0500A
- Product - 0.625" Thru-Bore Rotary Pulse Generators
- PPR - 500
ZPJ0600A
- Product - 0.625" Thru-Bore Rotary Pulse Generators
- PPR - 600
ZPJ1000A
- Product - 0.625" Thru-Bore Rotary Pulse Generators
- PPR - 1000
ZPJ1200A
- Product - 0.625" Thru-Bore Rotary Pulse Generators
- PPR - 1200
ZPJ2000A
- Product - 0.625" Thru-Bore Rotary Pulse Generators
- PPR - 2000
ZPJ2500A
- Product - 0.625" Thru-Bore Rotary Pulse Generators
- PPR - 2500
1 - 8 of 8 Part Numbers
Specifications
Brand
Accuracy
- Within 0.01° Mechanical from One Cycle to Any Other Cycle, or 0.6 Arc minutes
Approvals & Certifications
- Noise Immunity: BS EN 61000-6-2, EN 50081-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 50011
Bore Size
- 0.625" (15.875 mm)
Electrical Connectors
- 36" (914.4 mm) Cable (Foil & Braid Shield, 24 AWG Conductors)
Enclosure, Body Material
- Non-Corosive Metal
Environmental Protection
- IP64
Frequency
- 200 kHz, Max.
Humidity
- 98 % RH, Non-Condensing
Mounting
- Flexible Arm 1.06" to 1.81" Radius Mounting
Operating Temperature
- 0° to 70° C (32° to 158° F)
Output
- 20 mA - Max.
- 30 Vdc, Max.
Output Format
- NPN Open Collector Transistor
Shock
- 50 G at 11 ms
Speed
- Maximum
Storage Temperature
- -40° to 100° C (-40° to 212° F)
Supply Voltage
- 4.75-28 Vdc, 100 mA - Max.
Tolerance
- Bore: -0.0000" / +0.0006"
- User Shaft Tolerance (Axial Endplay): ± 0.030", max.
- User Shaft Tolerance (Radial Runout): 0.007", max.
Torque
- 2.5 in/lb (17.65 Nmm)
Vibration
- 10 G at 58 to 500 Hz
