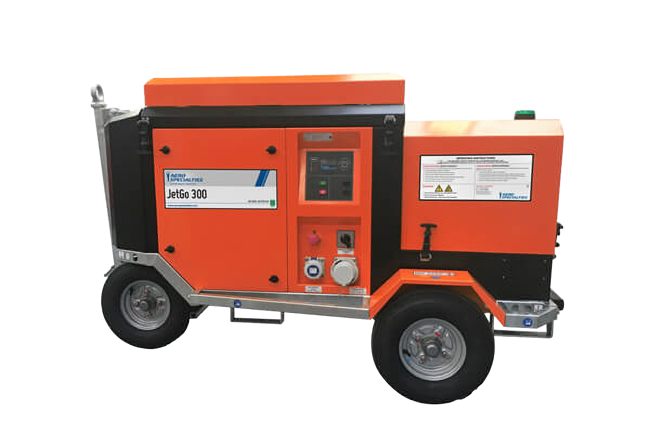

JetGo 300 28V DC Hybrid GPU
Brand: Powervamp LtdPowered by a Tier IV emission compliant 3-cylinder water-cooled Kubota diesel engine, the JetGo 300, (formerly known as the Coolspool Hybrid 300), is the latest model of Powervamp’s compact low cost diesel GPU range.
Developed for use by DC aircraft operators and FBOs, all or whom require continuous ripple free power during maintenance work in the hangar or on the ramp during turn-rounds, no other GPU delivers the versatility and convenience of Powervamp’s JetGo 300.
110 V or 220 V AC 50/60 Hz single phase power can be selected to provide power for ancillary equipment such as lights, work tools or aircraft cleaning equipment. A selector switch directs generator output to 28 VDC or 110 V/230 V single phase.
The JetGo 300 is available in various configurations and has been in series production for over 17 years. This latest model features simple controls with solid-state electrics and multi-function monitoring.
FBOs, regional airlines, and operators can now acquire DC power at a fraction of the cost of a conventional diesel GPU up to 4 times the size and engine capacity of Powervamp’s JetGo 300.
Features- Can operate as a TRU from a 3-phase utility supply allowing full performance within hangars or any confined area
- Support 24/26 V and 28.5 VDC systems
- 300 A continuous output at 28.5 VDC
- 110 V/230 V 50/60 Hz power outlets for ramp/hanger use
- 5000 peak amps
- Easy to manoeuvre and transport between operational bases
- Ability to recharge external ground power units via power output socket
- Simple to service and maintain
- Modular designs to suit operator requirements
- Reverse current protection
- Reverse polarity protection
- Complies with ISO 6858
Specifications
Brand
Peak Amps
- 5,000 A
Nominal Voltage
- Batteries 24 VDC
- Power Supply 28 VDC
Standing Voltage
- 25.6 Vdc
Amp/Hour Capacity
- 228 Ah
Operating Temperature
- -30° to +50° C (-22° to 122° F)
Case
- Galvanised Steel Frame with Alloy Panels
Control Panel
- LCD Screen Provides Detailed Information of Different Parameters
- Large Rubber ON/OFF Buttons for Easy Operation
Aircraft Cable
- 4 m (13 ft), 6 m (20 ft) and 8 m (26 ft) with Heavy-duty Rubber Nato Connector
Output Current
- 300 A Continuous
Input Voltage
- 190–200 VAC or 380–415 VAC / 50–60Hz
Input Current
- 32 A @ 400 VAC; 32 A @ 200 VAC/ 3-phase
Fuel Type
- Diesel
Fuel Tank Capacity
- 33 litres (7 gallons)
