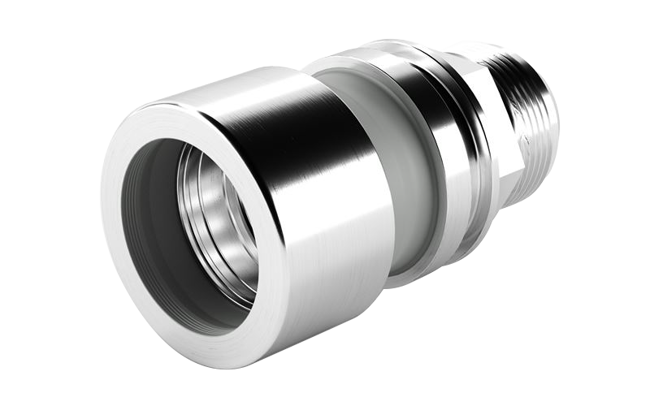

37° Male Adapter - Stainless Steel Pipe
Brand: Lokring37° Male Adapter - Stainless Steel Pipe Solutions
Specifications
Brand
Nominal Pipe Size
- 1/2 in
- 3/4 in
- 1 in
- 1 1/4 in
- 1 1/2 in
- 2 in
Fitting Bore I.D. for Pipe/Tube
- 0.86 in 21.8 mm
- 1.07 in 27.2 mm
- 1.33 in 33.8 mm
- 1.69 in 42.9 mm
- 1.92 in 48.8 mm
- 2.42 in 61.5 mm
Fitting Material
- Stainless Steel
Fitting Size
- P08-37F08
- P12-37F12
- P16-37F16
- P20-37F20
- P24-37F24
- P32-37F32
Part Length (Uninstalled) L
- 3.08 in 78.2 mm
- 3.54 in 89.9 mm
- 3.84 in 97.5 mm
- 4.23 in 107.4 mm
- 5.34 in 135.6 mm
- 6.52 in 165.6 mm
Part Length (Installed) L
- 2.64 in 67.1 mm
- 3.05 in 77.5 mm
- 3.29 in 83.7 mm
- 3.59 in 91.1 mm
- 4.64 in 117.8 mm
- 5.69 in 144.6 mm
Fitting Type
- Male Adapter
Thread
- 3/4-16 UNF
- 1 1/16-12 UNF
- 1 5/16-12 UNF
- 1 5/8-12 UNF
- 1 7/8-12 UNF
- 2 1/2-12 UNF
Installation Tool Kit
- IT20/IT45
- IT30/IT45
- IT45/IT60
- IT60
Certifications / Approvals
- ABS
- CRN
- CARB
- USCG
