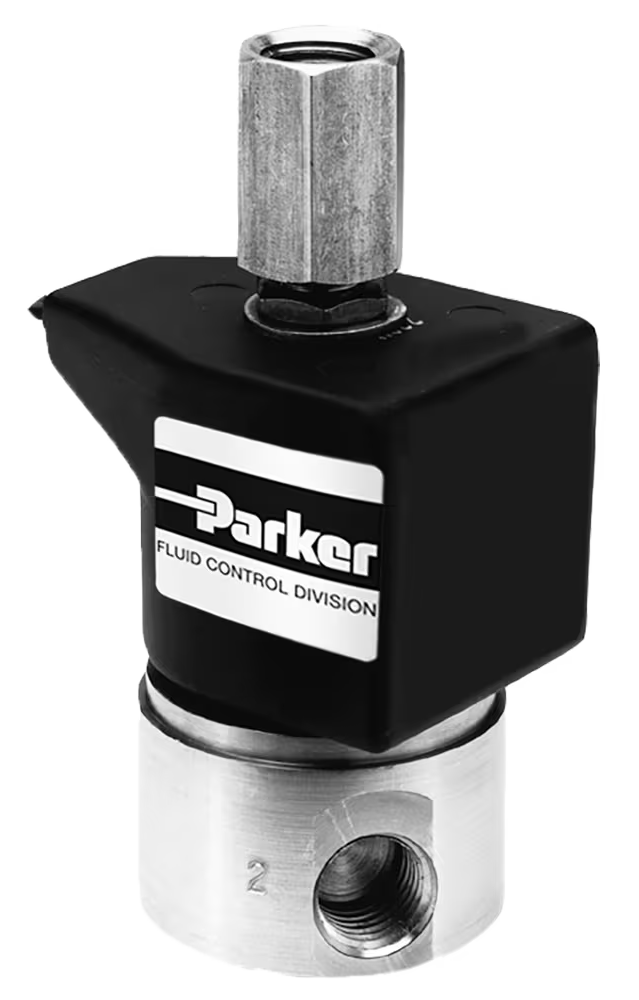

Parker 3-Way Normally Closed, ¼" NPT General-Purpose Solenoid Valves

Brand: Parker - Fluid Control Division
Add Product to My Catalog

Parker 3-Way Normally Closed, ¼" NPT Solenoid Valves provide operating pressures up to 250 psi and flow factors up to 0.67 Cᵥ's.

They come in stainless with multiple mounting positions and coil options for all general-purpose flow control applications.

Parker's 3-Way Normally Closed, Direct Acting ¼" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential.

Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction.

Coil options are available in ½" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Features
  • High Quality Standards of Skinner® and Gold Ring™ Brand
  • Modular Design
  • Long Life
  • Tight Shutoff

1 - 12 of 314 Part Numbers
04F30C3104AAF4C01
04F30C3104AAF4C01
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 24/60 Voltage (V), NBR Seal Material, 1/16 Orifice Main (inch), 0.09 Flow Factor Main (Cv), 6 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 125 psi (AC) Maximum Pressure Differential (psi), No Option Mechanical Option
04F30C3104AAF4C05
04F30C3104AAF4C05
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 110/50-120/60 Voltage (V), NBR Seal Material, 1/16 Orifice Main (inch), 0.09 Flow Factor Main (Cv), 6 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 125 psi (AC) Maximum Pressure Differential (psi), No Option Mechanical Option
04F30C3104AAF4C15
04F30C3104AAF4C15
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 220/50-240/60 Voltage (V), NBR Seal Material, 1/16 Orifice Main (inch), 0.09 Flow Factor Main (Cv), 6 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 125 psi (AC) Maximum Pressure Differential (psi), No Option Mechanical Option
04F30C3104AAFPH01
04F30C3104AAFPH01
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 24/60 Voltage (V), NBR Seal Material, 1/16 Orifice Main (inch), 0.09 Flow Factor Main (Cv), 6 Watt (AC) Power (Watts), DIN Form A, Class F Coil Type, 125 psi (AC) Maximum Pressure Differential (psi), No Option Mechanical Option
04F30C3104AAFPH05
04F30C3104AAFPH05
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 110/50-120/60 Voltage (V), NBR Seal Material, 1/16 Orifice Main (inch), 0.09 Flow Factor Main (Cv), 6 Watt (AC) Power (Watts), DIN Form A, Class F Coil Type, 125 psi (AC) Maximum Pressure Differential (psi), No Option Mechanical Option
04F30C3104AAFPH15
04F30C3104AAFPH15
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 220/50-240/60 Voltage (V), NBR Seal Material, 1/16 Orifice Main (inch), 0.09 Flow Factor Main (Cv), 6 Watt (AC) Power (Watts), DIN Form A, Class F Coil Type, 125 psi (AC) Maximum Pressure Differential (psi), No Option Mechanical Option
71315SN2EN00N0C111C1
71315SN2EN00N0C111C1
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 12 VDC Voltage (V), NBR Seal Material, 3/64 Orifice Main (inch), 0.062 Flow Factor Main (Cv), 10 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 250 psi (DC) Maximum Pressure Differential (psi), No Option Mechanical Option
71315SN2EN00N0C111C2
71315SN2EN00N0C111C2
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 24 VDC Voltage (V), NBR Seal Material, 3/64 Orifice Main (inch), 0.062 Flow Factor Main (Cv), 10 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 250 psi (DC) Maximum Pressure Differential (psi), No Option Mechanical Option
71315SN2EN00N0C111P3
71315SN2EN00N0C111P3
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 110/50-120/60 Voltage (V), NBR Seal Material, 3/64 Orifice Main (inch), 0.062 Flow Factor Main (Cv), 10 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 250 psi (AC) Maximum Pressure Differential (psi), No Option Mechanical Option
71315SN2EN00N0C111Q3
71315SN2EN00N0C111Q3
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 220/50-240/60 Voltage (V), NBR Seal Material, 3/64 Orifice Main (inch), 0.062 Flow Factor Main (Cv), 10 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 250 psi (AC) Maximum Pressure Differential (psi), No Option Mechanical Option
71315SN2EN00N0C222C1
71315SN2EN00N0C222C1
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 12 VDC Voltage (V), NBR Seal Material, 3/64 Orifice Main (inch), 0.062 Flow Factor Main (Cv), 10 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X Coil Type, 250 psi (DC) Maximum Pressure Differential (psi), No Option Mechanical Option
71315SN2EN00N0C222C2
71315SN2EN00N0C222C2
PARKER 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves, 24 VDC Voltage (V), NBR Seal Material, 3/64 Orifice Main (inch), 0.062 Flow Factor Main (Cv), 10 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X Coil Type, 250 psi (DC) Maximum Pressure Differential (psi), No Option Mechanical Option
1 - 12 of 314 Part Numbers

View_Details

Specifications

Brand

Actuation

  • Direct-Acting

Body Material

  • Stainless Steel

Coil Protection Mode

  • NEMA 4X, 7 or 9 or Class F or H

Coil Type

  • 1/2" NPT Conduit, 18" Leads, Class F or H, NEMA 7, 9 or 4X, DIN Form A, Class F or H & 1/4" Tab Terminal, Class F

Flow Factor 2 (Cᵥ)

  • N/A

Flow Factor Exhaust

  • 0.9 to 0.17 Cv

Flow Factor Main

  • 0.062 to 0.67 Cv

Function

  • Normally Closed

Maximum Fluid Temperature

  • 185° F

Maximum Pressure Differential

  • Up to 250 psi (AC or DC) or VAC

Mechanical Option

  • Exhaust Adapter Nut, Manual Override with Exhaust Adapter Nut or No Option

Media

  • General-purpose for Air, Liquids & Gases

Minimum Fluid Temperature

  • 0° F

Minimum Pressure Differential

  • 0 psi

Number of Ports

  • 3

Orifice 2 Size (inch)

  • N/A

Orifice Exhaust

  • 1/16" or 3/32"

Orifice Main

  • 1/16" to 3/64"

Port Size

  • 1/4"

Port Type

  • NPT

Power

  • 6 to 10 Watts (AC) or 10 Watts (DC)

Seal Material

  • FKM or NBR

Series

  • 7000 & Gold Ring Series

Valve Type

  • 3-Way

Voltage

  • 24/60 to 220/50-240/60 V(AC) or 12 to 24 (VDC)

  • Single Acting Spring Return Cylinder Control
  • Selection or Diversion of Process Media
  • HVAC Damper Control
  • Instrumentation Equipment
  • Pneumatic Positioning
  • Automatic Dispensing Equipment
  • Gas Sampling
  • Small Compressors
  • Water Treatment
  • Air Dryers
  • Analyzers and Diagnostic Equipment
  • Medical and Dental Equipment
  • Portable Welding Equipment
  • Spraying Equipment
  • Lubrication Equipment
  • Textile and Dry Cleaning Equipment
  • Irrigation Equipment
  • Markets:
    • Commercial Equipment
    • Food & Beverage
    • Industrial Automation
    • Oil & Gas
    • Process Control
    • Transportation
