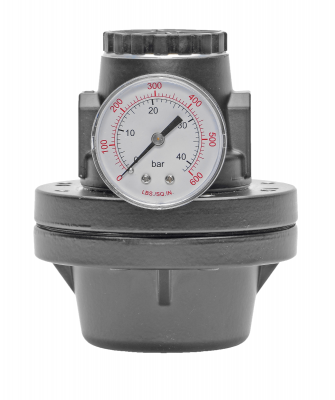

HPR100 Full Size Vanguard High Relief Externally Piloted Regulator 1/4", 3/8" and 1/2"
Brand: Master Pneumatic
Features
- Inline mounting.
- Diaphragm design.
- Optional pressure gauges.
- NPTF port threads: Optional BSPP Threads.
- Flow rates exceed 150 scfm.
- High Relief characteristics up-to 200 scfm.
Specifications
Brand
Ambient / Media Temperature
- 0° to 158° F (-18° to 70° C)
Enclosure / Body Material
- Body: Zinc
Material of Construction
- Dome: Zinc
- Valve: Brass
- Valve Cap: Glass Filled Nylon
- Elastomers: Nitrile
Media
- Compressed Air
Inlet Pressure
- 10 to 400 psig (0.7 to 27.6 bar)
Outlet Pressure
- Adjustable Up to 250 psig (17.3 bar)
Pilot / Gauge Ports
- 1/4-NPTF Inlet/Outlet Ports
- 1/4-NPTF Gauge Ports 3/8-NPTF Inlet/Outlet Ports
- 3/8-NPTF Gauge Ports 1/2-NPTF Inlet/Outlet Ports
- 1/2-NPTF Gauge Ports
