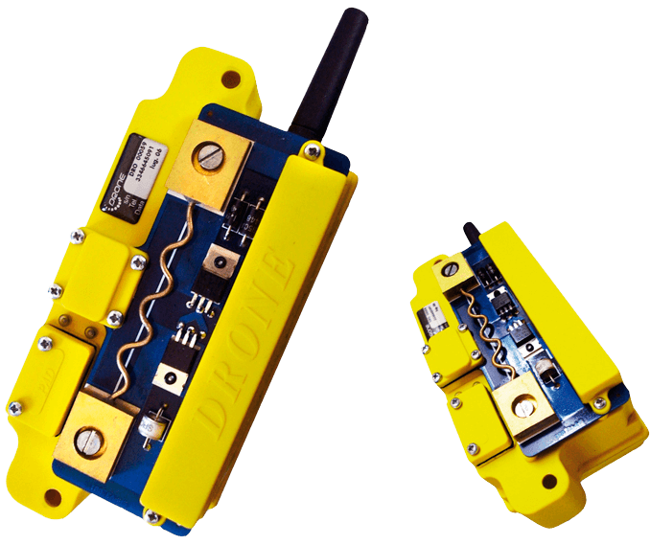

Drone Remote Monitoring Unit for Cathodic Protection
Brand: Pietro Fiorentini S.p.A.Drone is a two channels datalogger for potential and current intensity measures. Drone is a standard datalogger which allows to carry out a continuous and automated reading of cathodic Protection data.
Reliability and solidity: data storage for 30 consecutive days (data recovery in case of transmission problems), solid and compact container with built-in electronic card and modem, rigid antenna remotely mountable.
Extremely simple installation: neither specific knowledge nor special tools such as laptop, etc… are required.
Specifications
Brand
Measure Channels
- 2 (Voltage and Current)
Data Transmission
- Dual-band Modem: gprs / data / sms
Selectable Voltage Ranges
- ± 150 mV
- ± 10 V
- ± 100 V
Input Impedance
- 1 MΩ
Calibration
- Auto-Check Executed at Each Measure with Warning to Data Center in Case of Wrong Calibration
Working Temperature
- -20° to 60° C
Accuracy
- 0.5%
A.C. Rejection
- -60 dB a 50 Hz
Power Supply
- Built-in Battery Package
Battery Life
- 36 months
