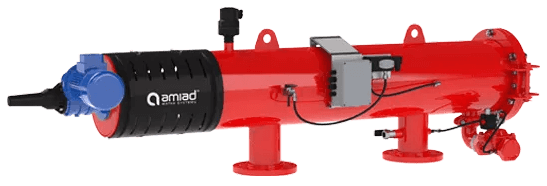

SAF-X Highly Efficient Self-Cleaning Screen Filter
Brand: Amiad Water Systems LtdThe SAF-X self-cleaning filter provides improved usability, easier maintenance and higher installation flexibility along with Amiad’s proven suction-scanning cleaning technology.
The reliable operating mechanism and simple construction makes it the ideal solution for filtration of poor water quality to very fine filtration degrees.
The SAF-X filter offers large filtration area and suction scanner cleaning technology driven by an electrical drive-unit.
Suitable for wide variety of irrigation water filtration applications, heavy loads and challenging types of TSS.
Automatic cleaning without flow interruption and with minimal wasted water.
The SAF-X Series includes various sizes and flange connections and the filters are adaptable special applications and specific requirements.
Specifications
Brand
Flow Rate
- Maximum 80 to 240 m³/h (352 to 1,060 gpm)
Design Pressure
- 10 bar (150 psi)
Operating Pressure
- Minimum: 2 bar (30 psi)
Operating Temperature
- 4° to 50° C (39.2° to 122° F)
Filtration Area
- 1,500 cm² (233 in²)
- 3,000 cm² (465 in²)
- 4,500 cm² (700 in²)
Control Voltage
- 24 Vac/dc
Material of Construction
- Filter Housing & Llid: Epoxy-Coated Carbon Steel 37-2 (Stainless Steel 316 Available on Request)
- Screens: Stainless Steel 316
- Cleaning Mechanism: Stainless Steel 316, POM, PVC
- Exhaust Valve: Epoxy-Coated Cast Iron, Natural Rubber
- Seals: Synthetic Rubber
- Control: Aluminium, Brass, Stainless Steel, PVC
Filtration Degree
- 80 to 800 micron (0.08 to 0.8 mm)
