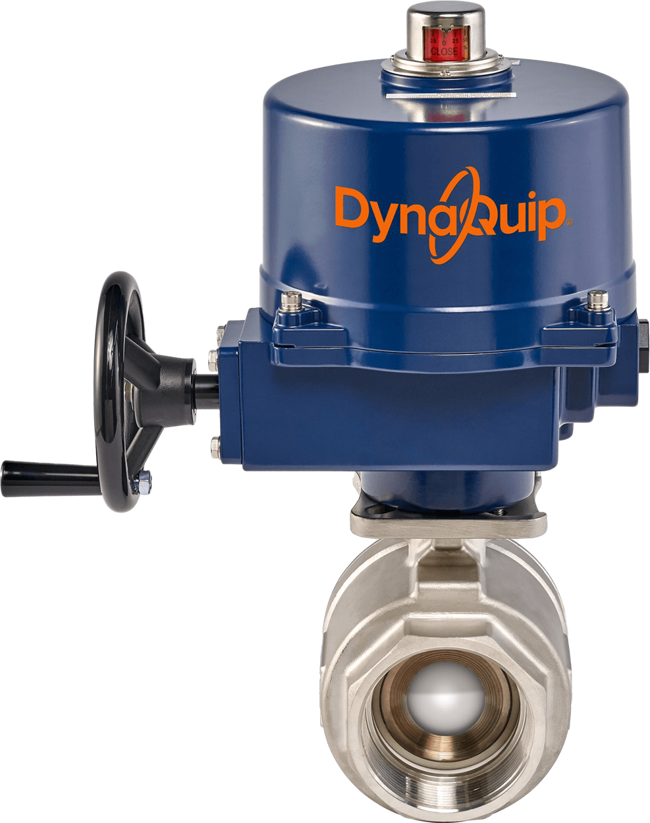

EAS Series - 2 PC High Pressure Stainless Steel Ball Valve - Electric Actuator
Brand: DynaQuip ControlsThe EAS Series of electric automated stainless-steel ball valves are designed for high-pressure applications.
This series includes our DE, MA, and JE electric actuators.
They can be ordered in pre-sized and preassembled automation packages to suit your specifications.
The ISO 5211 direct mounting provides accurate alignment and a more compact size compared to traditional actuator mounting styles.
These automated valves are available in 12 to 240 VAC/VDC.
All models are pre-sized for clean water, air, or light oil applications.
Features- ISO 5211 Direct Mounting
- Full Port
- NPT Female Threaded Ends
- Stainless Steel CF8M Construction
- Delrin Seats
Specifications
Brand
Valve Size
- 1/4 in
- 3/8 in
- 1/2 in
- 3/4 in
- 1 inch
- 1-1/4 in
- 1-1/2 inch
- 2 inch
Electric Voltage
- 24-240 Vac - 24-135 Vdc
- 120 Vac
Actuator Type
- AJE2S
- AJE3S
- AJE5S
- AJE7S
- DE156
- DE304
- MA4
- MA7
Valve Type
- Ball
Operating PSI (D)
- 3000 psi
Seat Material
- Delrin
Body Style
- 2 Piece
Seal Type
- PTFE
