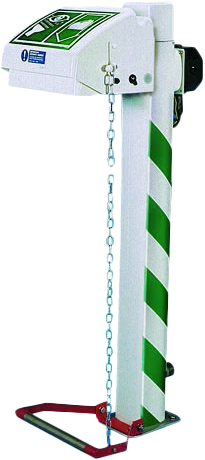

Hughes Eye/Face Wash Freeze Protected Pedestal Mount

Brand: Justrite
Add Product to My Catalog

This freeze protected and insulated eye/face wash is intended for use where there is a possibility of the water freezing due to extreme cold climates.

It features trace tape heating with polyethylene jacket and polyurethane foam insulation to improve frost protection and strength.

Pedestal-mounted eye/face wash unit, designed at ANSI-compliant height, is generally located in open areas away from walls.

These freeze protected models are trace-tape heated and insulated, suitable for use in both Class 1 Division 2 hazardous areas, as well as non-hazardous areas.

Made of durable, corrosion-resistant acrylic capped ABS, the eye/face wash incorporates an integral lid connected to the water valve for automatic operation—activate by simply pulling down the lid.

Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident. Includes an inspection record tag for recording test and service history.
Features
  • For cold climates with a minimum ambient operating temperature of -4°F (-20°C) or above
  • Covered acrylic-capped ABS eye/face wash protects the bowl and eyewash diffusers from dust and debris
  • Diffusers provide a gentle flow of aerated water and prevent further injury to the eyes
  • Includes a separate universal eyewash sign for enhanced visibility
  • Meets ANSI and EN 15154 standards and supports OSHA requirements

Specifications

Brand

Color

  • White

Water Inlet Size

  • 1-1/4” NPTM

Operating Pressure

  • Minimum: 2 bar g, 29 psi
  • Maximum: 6 bar g, 87 psi

Maximum Water Flow

  • 11.4  Liters/min
  • 3 US Gal/min

Operating Valve Material

  • Chrome plated brass

Eye/Face Wash Bowl Material

  • Acrylic-Capped ABS Plastic

Mounting Type

  • Pedestal

Electrical Equipment Classification

  • Class 1 Div. 2, Gas Groups C & D, Temperature Code T3

Electrical Supply

  • 240 Vac, Single Phase, 60/50 Hz

Ambient Temperature Range
