GP:50 Submersible Level Pressure Transmitter, Model 1103

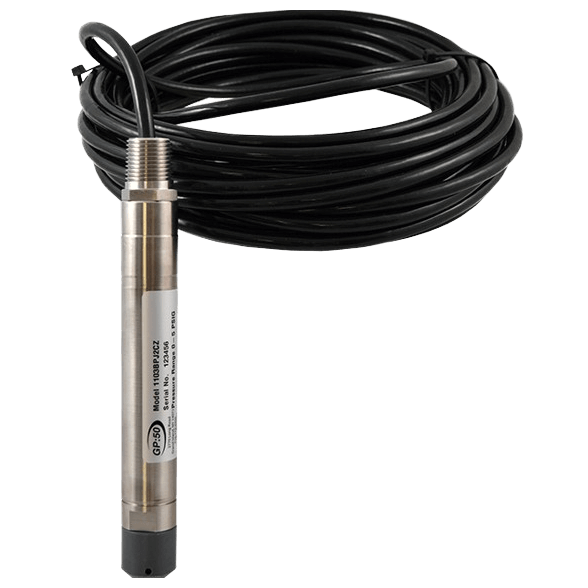

Model 1103 Submersible Level Pressure Transmitter

Brand: GP:50 New York Ltd
Add Product to My Catalog

The Model 1102/1103 from GP:50 is a family of submersible level transmitters, designed to provide high-accuracy measurements at a competitive price point.

They are offered with an all 316L stainless steel construction for extended corrosion-free service life. An optional sludge screen is available for viscous media or wastewater applications
Features
  • Low-cost, high-reliability
  • Submersible to 700 feet WC (213.4 meters WC)
  • 1” (2.5 cm) diameter
  • Up to ±0.2 % Full Scale Output accuracy
  • All 316L stainless steel construction (optional titanium)

1 - 2 of 2 Part Numbers
1103-B-PE-2-CZ(30)
1103-B-PE-2-CZ(30)
GP:50 Submersible Level Transmitter, 0-2 psig, ± 0 .5%, 4-20 mA Output, 316 SST, 30' Pu Cable, 1/2" MNPT Elect Conn
1103-B-PJ-2-CZ(30)
1103-B-PJ-2-CZ(30)
GP:50 Submersible Level Transmitter, 0-5 psig, ± 0 .5%, 4-20 mA Output, 316 SST, 30' Pu Cable, 1/2" MNPT Elect Conn
1 - 2 of 2 Part Numbers

Specifications

Brand

Accuracy

  • ± 0.2 % of FSO
  • ± 0.5 % of FSO

Compensated Temperature

  • -7° to 60° C (0° to 140° F)

Electrical Connectors

  • 1/2" NPT Male Conduit with 8.5 ft of 18 AWG, 4-Conductor, Shielded, Hytrel Jacketed Cable with Integral Vent Tube & Hydrophobic Filter

Enclosure, Body Material

  • 316 Stainless Steel

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Output

  • 4-20 mA

Pressure Range

  • bar: 0.3 to 21
  • inH₂O: 0 to 700 ft
  • kPa: 0 to 2,068
  • psi: 0 to 300

Proof Pressure

  • 1.5 x FSO

Response Time

  • < 5 ms

SAE Connection

  • 7/16"-20 SAE Male

Span & Zero Effect

  • < ± 2.0 % of FSO at 38° C (100° F)

Storage Temperature

  • -40° to 91° C (-40° to 195° F)

Supply Voltage

  • 9 to 36 Vdc

Zero Balance

  • ± 2 % of FSO

Documentation

Data Sheets
