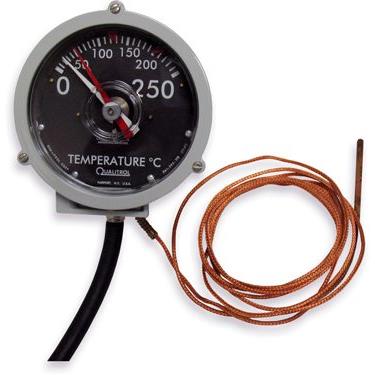

105 Capillary Based Oil Thermometer
Brand: Qualitrol CompanyCapillary based, remote indicating, mechanical thermometer.
Features a compact design for space restricted applications and bourdon tube measurement with resettable maximum pointer.
Available with up to 3 switches for temperature related alarms and control signals.
Features- Bourdon tube based capillary measurement with resettable maximum pointer
- Up to 2 user adjustable switches (contacts) and one additional fixed switch for control and alarms
- 5" (130 mm) dial face with an angular dial span of 120° for easy viewing
- Low profile probe can be dressed for use in dry type transformers
- Minimize the space required for remote indication
- 75" (146 mm) outer case diameter for small installation footprint
- 120° dial deflection (angular range of pointer) and 5″ (127 mm) dial face for easy interpretation of measurement
- Control cooling, alarms and other auxiliary equipment
- Up to 2 user adjustable switches (contacts) and one additional fixed switch (set by the factory) for control and alarms
- Multiple switches can be set to actuate at same temperature and lockdown screws reduce the effects of vibration and tampering on the switch settings
- UL and CSA recognized switches
- Increase reliability with rugged design and corrosion resistant materials
- Vented (free-breathing) models feature dual breathers that act as vacuum breakers to prevent unwanted moisture intake
- Molded neoprene channel gasket uniformly clamped in place with a powder coated, die-cast aluminum bezel ring and stainless steel hardware, sealing against water entry around entire lens
- Reset knob magnetically coupled through front of lens reduces the possibility of moisture entry
- UV-stabilized polycarbonate lens has high-impact strength and resists clouding and yellowing with age
- Double-braided armored capillary tube withstands environmental extremes
- Die-cast aluminum housing resists corrosion with two-part epoxy finish
- Simplify installation and operation
- Mounts directly onto the transformer or to shock mount
- Maximum temperature pointer follows indicating pointer upward and remains at hottest reading to track high temperature levels until reset
Specifications
Brand
Accuracy
- ± 2 % of Dial Range
Capillary Tube Gaurds
- Double Braided Copper or Square Lock Steel Conduit
Case
- Die Cast Aluminum, ASA #70 Light Grey Thermosetting Powder Coat Finish
Case Diameter
- 5.31" (134.9 mm)
Case Style
- Vented Case
Characters
- 0.25" (6.35 mm) & 0.50" (12.7 mm) High - Dial Readability
Compensation
- ± 2 % of Dial Range
Dial Diameter
- 4.5" (114.3 mm)
Dielectric Strength
- 1,500 Vac for One Minute
Electrical Connectors
- QUALITROL, Military, ANSI, Flying Leads, or Permamently Attached Cable
Lens
- UV Stabilized Polycarbonate
Mounting
- Vertical (Back Plate or Panel Mounting)
Number of Switches
- Up to 3 (2 Adjustable & 1 Fixed)
Scale Layout
- 120° Angular Deflection (Dial Readability)
Sensor, Probe
- Brass
Sensor, Probe Connection
- 7/8"-14 UNF-2A
Sensor, Probe Connection Fitting
- Brass
Sensor, Probe Diameter
- 0.481" (12.2 mm)
Sensor, Probe Length
- 3.87" (98.3 mm)
Standard Dial Range
- 0° to 250° C (32° to 482° F)
Standard Operating Temperature
- -34° to 60° C (-30° to 140° F)
Switch Rating
- 1.5 A at 48 Vdc, Resistive
- 1/2 A at 125 Vdc, Resistive
- 1/4 A at 250 Vdc, Resistive
- 10 A at 125, 250 & 480 Vac
Switch Setting Accuracy
- ± 2 % of Dial Range (With the Pointer Rotating at a Speed of 25 % of the Dial Range/Minute)
Switch Setting Repeatability
- ± 1.250 % of Dial Range (With the Pointer Rotating at a Speed of 25 % of the Dial Range/Minute)
Switch Type
- Snap-Action, SPST or SPDT
Well
- Brass
- Stainless Steel
Well Connection
- 1/2"-14 Male NPT
