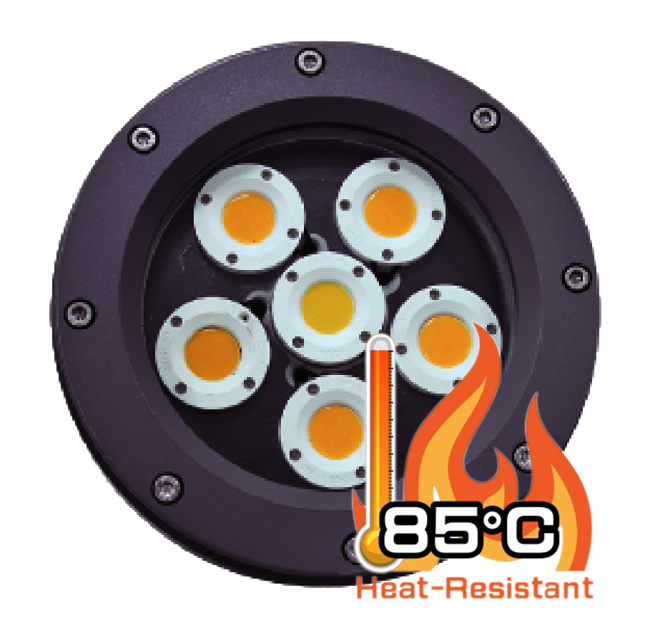

L1217 High Humidity & Heat Resistant LED Light
Brand: Top Hi-Tech Inc
- UL 1598 Luminaires
- CSA C22.2 No.250.0
- IP67 / NEMA 6
- AC LED Driver-less Technology
- Intended for Use in High Ambient Temperature Environments
- Up to 85° C Heat Resistant
Specifications
Brand
Rated Voltage (±10%)
- 120 V / 220 V / 277 V / 480 Vac
Watts (±10%)
- 120 W
Amps
- 120 V: 1.00 A
- 220 V: 0.54 A
- 277 V: 0.43A
- 480 V: 0.25 A
Color of LED Light
- 3000K (Warm White)
- 5000K (Cool White)
Ambient Temperature
- 66° to 85° C (150.8° to 185° F)
Power Factor
- cos ≥ 0.9
CRI
- Warm White ≥ 80
- Cool White ≥ 70
Lumen (± 10%)
- 3000K: 10,800 lm
- 5000K: 12,000 lm
Beam Angle
- X-110°
- Y-110°
Frequency
- 50/60 Hz
Environmental Protection
- IP67
- NEMA 6
Enclosure / Body Material
- Enclosure: Aluminum Alloy
Materials of Construction
- Screws: Stainless Steel
- Tempered Glass: IEC Standards Impact resistant > 4 Joule
LED Service Life
- 60,000 hours
Entrance Thread
- 4 x M25
- 1 x G 1-1/2"
Net Weight
- 11.0 kg (24.2 lb)
- Pulp & Paper Industry
- Power Plants
- Smelter
- Casthouse
- Automotive Industry
- Textile Industry
- Cable Manufacturing
- Glass Factory
