T700 Boroscope Inspection Kit
Brand: ITI Instrument Technology, Inc
The ITI T700 Borescope Inspection Kit delivers the most reliable inspection solution for preventive and corrective maintenance on the GE T700 engines.

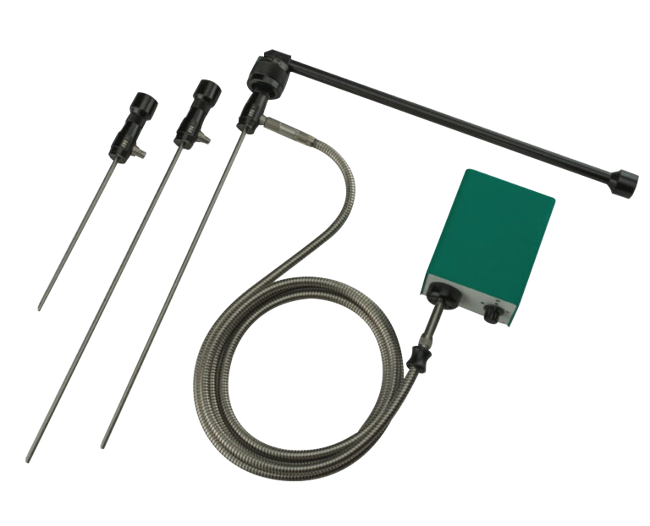

The Kit contains three borescopes, a light source, accessories and instructions - everything an inspector needs to perform a complete T700 engine inspection.
As long as there are GE T700 helicopter engines, ITI will continue manufacture and support our T700 kits.
Features- Built to GE specs
- GE-approved
- 100% acceptance rate
- Sturdy, reliable optics
- Warrantied
- Made in America
Specifications
Borescope
- Ø5.3 mm/35 cm, 45°/RA
- Ø5.3 mm/35 cm, 40°/RO
- Ø5.3 mm/17 cm, 70°/RA
Diameter of Scope (+0/-0.02”)
- 0.210” (5.33 mm
Working Length (±.25”)
- 13.64” (34.6 cm)
- 13.67” (34.7 cm)
- 6.76” (17.2 cm)
Line of Sight (±5°)
- 90°
- 120°
Field of View (Min)
- 44.5°
- 39.5°
- 70° ±10°
Focus Range (Min/Max)
- 0.12” (3 mm) to Infinity
- 0.27” (7 mm) to Infinity
Magnification @ Distance (±10%)
- 100% @ 2.00”
- 100% @ 1.20”
Tip Length (Max)
- 0.224” (5.69 mm)
- 0.252” (6.40 mm)
Overall Length (Max)
- 16.47” (41.8 cm)
- 16.50” (41.9 cm)
- 9.69” (24.6 cm)
