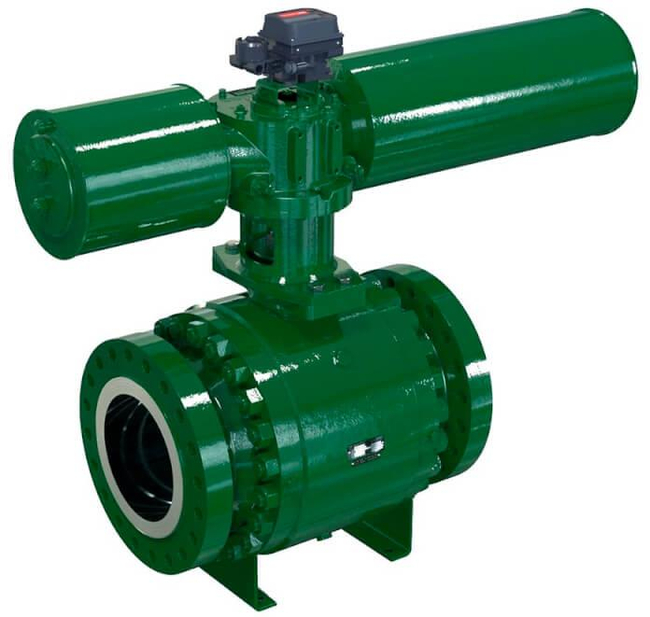

V270 Full Bore Ball Control Valve
Brand: FisherThe Fisher V270 is a three piece, trunnion mounted, full-bore control valve designed from the ground up with features for optimized pressure, flow and process control.
The V270 full-bore ball valve is designed for automated control in bypass, batch, monitor, and emergency shutoff service applications, and it presents little or no restriction to flow.
The V270 full-bore ball valve is available with composition seals, and process type live-loaded shaft packing for improved service life and lower emissions.
Features- Shaft and trunnion guiding provides improved dynamic control.
- Standard construction materials comply with NACE Standard MR0175 / IS 15156.
- Self-adjusting seals are pressure assisted to provide Class VI shutoff for long, reliable service. Design incorporates a heavy duty S31600 stainless steel carrier that retains the composition seal.
- Comes standard with a base bracket allowing the valve to sit upright.
- The ball trunnions are designed for demanding applications requiring long service life, with a reduction in maintenance time and costs.
- Design comes standard with a dual seal arrangement.
- Optional fire safe construction.
Specifications
Brand
Approvals & Certifications
- CRN, NACE
Critical Service
- General Service, Mixing
Flow Characteristics
- Modified Equal Percentage
Material
- Carbon Steel
Operating Temperature
- Standard Temperature
Other Configurations
- Contact Your Local Emerson Business Partner or Sales Office to Learn About Additional Specifications or Options for This Product.
Pressure Class
- ASME
Process Connection Type
- Flanged
Shutoff Class
- Class VI (FCI 70-2)
Valve Size
- NPS 6, NPS 8, NPS 10, NPS 12, NPS 14, NPS 16, NPS 20, NPS 24
Valve Size Standard
- NPS
