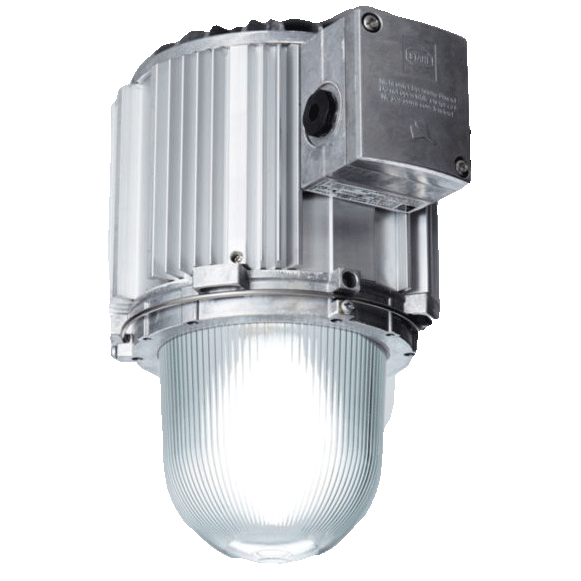

Pendant Light Fitting Series 6050/1, 6050/3

Ambient Conditions

• Ambient temperature - -60 °C ... +50 °C -50 °C ... +50 °C
• Ambient temperature max. - +50 °C
• Ambient temperature max.2 - +50 °C
• Ambient temperature min. - -60 °C
• Ambient temperature min. 2 - -50 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - with
• Frequency range - 50 - 50 Hz
• Lamp wattage - 50 W
• Nominal current - 0.300 - 0.300 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -60 - 50 °C
• Ambient temperature °C 2 - -50 - 50 °C
• Ambient temperature dust Ex-area °C - -60 °C ... +50 °C
• Ambient temperature gas Ex-area °C - -50 °C ... +50 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T90 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T90 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T5 Gb
• Gas explosion protection IECEx - Ex de IIC T5 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/11.1-30511-.0.-1
• Title Product Variant Technical Data - 6050/11.1-30511-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - HSE
• Lamp holder - E27
• Lamp type - HID - lamp
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66 / IP68 (10 m)
• Design size - 1
• Enclosure material - Aluminium, Seawater-resistant
• Height - 392.000 mm
• Length - 236.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 10.250 kg
• Width - 236.000 mm

Ambient Conditions

• Ambient temperature - -60 °C ... +50 °C -50 °C ... +50 °C
• Ambient temperature max. - +50 °C
• Ambient temperature max.2 - +50 °C
• Ambient temperature min. - -60 °C
• Ambient temperature min. 2 - -50 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - with
• Frequency range - 50 - 50 Hz
• Nominal current - 0.550 - 0.550 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -60 - 50 °C
• Ambient temperature °C 2 - -50 - 50 °C
• Ambient temperature dust Ex-area °C - -60 °C ... +50 °C
• Ambient temperature gas Ex-area °C - -50 °C ... +50 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T125 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T125 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T4 Gb
• Gas explosion protection IECEx - Ex de IIC T4 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/11.1-21011-.0.-1
• Title Product Variant Technical Data - 6050/11.1-21011-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - HIE
• Lamp holder - E27
• Lamp type - HID - lamp
• Lamp wattage - 100 W
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66 / IP68 (10 m)
• Design size - 1
• Enclosure material - Aluminium, Seawater-resistant
• Height - 392.000 mm
• Length - 236.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 11.100 kg
• Width - 236.000 mm

Ambient Conditions

• Ambient temperature - -60 °C ... +40 °C -50 °C ... +40 °C
• Ambient temperature max. - +40 °C
• Ambient temperature max.2 - +40 °C
• Ambient temperature min. - -60 °C
• Ambient temperature min. 2 - -50 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - with
• Frequency range - 50 - 50 Hz
• Lamp wattage - 150 W
• Nominal current - 0.800 - 0.800 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -60 - 40 °C
• Ambient temperature °C 2 - -50 - 40 °C
• Ambient temperature dust Ex-area °C - -60 °C ... +40 °C
• Ambient temperature gas Ex-area °C - -50 °C ... +40 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T130 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T130 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T4 Gb
• Gas explosion protection IECEx - Ex de IIC T4 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/11.1-21511-.0.-1
• Title Product Variant Technical Data - 6050/11.1-21511-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - HIE
• Lamp holder - E27
• Lamp type - HID - lamp
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66 / IP68 (10 m)
• Design size - 1
• Enclosure material - Aluminium, Seawater-resistant
• Height - 392.000 mm
• Length - 236.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 12.100 kg
• Width - 236.000 mm

Ambient Conditions

• Ambient temperature - -60 °C ... +40 °C -50 °C ... +40 °C
• Ambient temperature max. - +40 °C
• Ambient temperature max.2 - +40 °C
• Ambient temperature min. - -60 °C
• Ambient temperature min. 2 - -50 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - with
• Frequency range - 50 - 50 Hz
• Nominal current - 0.430 - 0.430 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -60 - 40 °C
• Ambient temperature °C 2 - -50 - 40 °C
• Ambient temperature dust Ex-area °C - -60 °C ... +40 °C
• Ambient temperature gas Ex-area °C - -50 °C ... +40 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T95 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T95 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T5 Gb
• Gas explosion protection IECEx - Ex de IIC T5 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/11.1-20711-.0.-1
• Title Product Variant Technical Data - 6050/11.1-20711-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - HIE
• Lamp holder - E27
• Lamp type - HID - lamp
• Lamp wattage - 70 W
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66 / IP68 (10 m)
• Design size - 1
• Enclosure material - Aluminium, Seawater-resistant
• Height - 392.000 mm
• Length - 236.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 10.700 kg
• Width - 236.000 mm

Ambient Conditions

• Ambient temperature - -60 °C ... +50 °C -50 °C ... +50 °C
• Ambient temperature max. - +50 °C
• Ambient temperature max.2 - +50 °C
• Ambient temperature min. - -60 °C
• Ambient temperature min. 2 - -50 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - with
• Frequency range - 50 - 50 Hz
• Lamp wattage - 70 W
• Nominal current - 0.380 - 0.380 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -60 - 50 °C
• Ambient temperature °C 2 - -50 - 50 °C
• Ambient temperature dust Ex-area °C - -60 °C ... +50 °C
• Ambient temperature gas Ex-area °C - -50 °C ... +50 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T110 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T110 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T4 Gb
• Gas explosion protection IECEx - Ex de IIC T4 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/11.1-30711-.0.-1
• Title Product Variant Technical Data - 6050/11.1-30711-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - HSE
• Lamp holder - E27
• Lamp type - HID - lamp
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66 / IP68 (10 m)
• Design size - 1
• Enclosure material - Aluminium, Seawater-resistant
• Height - 392.000 mm
• Length - 236.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 10.700 kg
• Width - 236.000 mm

Ambient Conditions

• Ambient temperature - -20 °C ... +40 °C -20 °C ... +40 °C
• Ambient temperature max. - +40 °C
• Ambient temperature max.2 - +40 °C
• Ambient temperature min. - -20 °C
• Ambient temperature min. 2 - -20 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - with
• Frequency range - 50 - 50 Hz
• Nominal current - 2.100 - 2.100 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -20 - 40 °C
• Ambient temperature °C 2 - -20 - 40 °C
• Ambient temperature dust Ex-area °C - -20 °C ... +40 °C
• Ambient temperature gas Ex-area °C - -20 °C ... +40 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T127 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T127 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T4 Gb
• Gas explosion protection IECEx - Ex de IIC T4 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/31.1-24021-.0.-1
• Title Product Variant Technical Data - 6050/31.1-24021-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - HIE
• Lamp holder - E40
• Lamp type - HID - lamp
• Lamp wattage - 400 W
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66
• Design size - 3
• Enclosure material - Aluminium, Seawater-resistant
• Height - 530.000 mm
• Length - 360.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 29.000 kg
• Width - 360.000 mm

Ambient Conditions

• Ambient temperature - -20 °C ... +50 °C -20 °C ... +50 °C
• Ambient temperature max. - +50 °C
• Ambient temperature max.2 - +50 °C
• Ambient temperature min. - -20 °C
• Ambient temperature min. 2 - -20 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - with
• Frequency range - 50 - 50 Hz
• Lamp wattage - 150 W
• Nominal current - 0.800 - 0.800 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -20 - 50 °C
• Ambient temperature °C 2 - -20 - 50 °C
• Ambient temperature dust Ex-area °C - -20 °C ... +50 °C
• Ambient temperature gas Ex-area °C - -20 °C ... +50 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T100 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T100 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T4 Gb
• Gas explosion protection IECEx - Ex de IIC T4 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/31.1-31521-.0.-1
• Title Product Variant Technical Data - 6050/31.1-31521-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - HSE
• Lamp holder - E40
• Lamp type - HID - lamp
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66
• Design size - 3
• Enclosure material - Aluminium, Seawater-resistant
• Height - 530.000 mm
• Length - 360.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 29.000 kg
• Width - 360.000 mm

Ambient Conditions

• Ambient temperature - -20 °C ... +40 °C -20 °C ... +40 °C
• Ambient temperature max. - +40 °C
• Ambient temperature max.2 - +40 °C
• Ambient temperature min. - -20 °C
• Ambient temperature min. 2 - -20 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - with
• Frequency range - 50 - 50 Hz
• Lamp wattage - 250 W
• Nominal current - 1.350 - 1.350 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -20 - 40 °C
• Ambient temperature °C 2 - -20 - 40 °C
• Ambient temperature dust Ex-area °C - -20 °C ... +40 °C
• Ambient temperature gas Ex-area °C - -20 °C ... +40 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T110 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T110 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T4 Gb
• Gas explosion protection IECEx - Ex de IIC T4 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/31.1-32521-.0.-1
• Title Product Variant Technical Data - 6050/31.1-32521-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - HSE
• Lamp holder - E40
• Lamp type - HID - lamp
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66
• Design size - 3
• Enclosure material - Aluminium, Seawater-resistant
• Height - 530.000 mm
• Length - 360.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 29.000 kg
• Width - 360.000 mm

Ambient Conditions

• Ambient temperature - -20 °C ... +40 °C -20 °C ... +40 °C
• Ambient temperature max. - +40 °C
• Ambient temperature max.2 - +40 °C
• Ambient temperature min. - -20 °C
• Ambient temperature min. 2 - -20 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - with
• Frequency range - 50 - 50 Hz
• Nominal current - 1.970 - 1.970 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -20 - 40 °C
• Ambient temperature °C 2 - -20 - 40 °C
• Ambient temperature dust Ex-area °C - -20 °C ... +40 °C
• Ambient temperature gas Ex-area °C - -20 °C ... +40 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T130 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T130 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T4 Gb
• Gas explosion protection IECEx - Ex de IIC T4 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/31.1-34021-.0.-1
• Title Product Variant Technical Data - 6050/31.1-34021-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - HSE
• Lamp holder - E40
• Lamp type - HID - lamp
• Lamp wattage - 400 W
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66
• Design size - 3
• Enclosure material - Aluminium, Seawater-resistant
• Height - 530.000 mm
• Length - 360.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 29.000 kg
• Width - 360.000 mm

Ambient Conditions

• Ambient temperature - -20 °C ... +50 °C -20 °C ... +50 °C
• Ambient temperature max. - +50 °C
• Ambient temperature max.2 - +50 °C
• Ambient temperature min. - -20 °C
• Ambient temperature min. 2 - -20 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - without
• Frequency range - 50 - 50 Hz
• Nominal current - 0.100 - 0.100 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -20 - 50 °C
• Ambient temperature °C 2 - -20 - 50 °C
• Ambient temperature dust Ex-area °C - -20 °C ... +50 °C
• Ambient temperature gas Ex-area °C - -20 °C ... +50 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T6 Gb
• Gas explosion protection IECEx - Ex de IIC T6 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/11.1-10210-.0.-1
• Title Product Variant Technical Data - 6050/11.1-10210-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - TC-TSE
• Lamp holder - E27
• Lamp type - Compact light fitting
• Lamp wattage - 23 W
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66 / IP68 (10 m)
• Design size - 1
• Enclosure material - Aluminium, Seawater-resistant
• Height - 392.000 mm
• Length - 236.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 10.800 kg
• Width - 236.000 mm

Ambient Conditions

• Ambient temperature - -60 °C ... +40 °C -50 °C ... +40 °C
• Ambient temperature max. - +40 °C
• Ambient temperature max.2 - +40 °C
• Ambient temperature min. - -60 °C
• Ambient temperature min. 2 - -50 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - without
• Frequency range - 50 - 50 Hz
• Lamp wattage - 250 W
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -60 - 40 °C
• Ambient temperature °C 2 - -50 - 40 °C
• Ambient temperature dust Ex-area °C - -60 °C ... +40 °C
• Ambient temperature gas Ex-area °C - -50 °C ... +40 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T142 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T142 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T3 Gb
• Gas explosion protection IECEx - Ex de IIC T3 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/11.1-12510-.0.-1
• Title Product Variant Technical Data - 6050/11.1-12510-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - QT
• Lamp holder - E27
• Lamp type - Halogen lamp
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66 / IP68 (10 m)
• Design size - 1
• Enclosure material - Aluminium, Seawater-resistant
• Height - 392.000 mm
• Length - 236.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally shock-resistant Borosilicate glass
• Sealing material - Silicone
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 10.800 kg
• Width - 236.000 mm

Ambient Conditions

• Ambient temperature - -60 °C ... +50 °C -50 °C ... +50 °C
• Ambient temperature max. - +50 °C
• Ambient temperature max.2 - +50 °C
• Ambient temperature min. - -60 °C
• Ambient temperature min. 2 - -50 °C

Components

• Screw connections - 1 x M25 x 1.5
• Stopping plug - 1 x M25 x 1.5

Electrical Data

• Compensation - without
• Frequency range - 50 - 50 Hz
• Lamp wattage - 160 W
• Nominal current - 0.730 - 0.730 A
• Rated operational voltage AC - 230.00 - 230.00 V
• Rated operational voltage max. AC - 230.00 V
• Rated operational voltage min. AC - 230.00 V

Explosion Protection

• Ambient temperature °C - -60 - 50 °C
• Ambient temperature °C 2 - -50 - 50 °C
• Ambient temperature dust Ex-area °C - -60 °C ... +50 °C
• Ambient temperature gas Ex-area °C - -50 °C ... +50 °C
• Application range (zones) - 1, 2, 21, 22
• ATEX dust certificate - PTB 03 ATEX 1096
• ATEX gas certificate - PTB 03 ATEX 1096
• Certificates - ATEX (PTB), China (CQST), EAC (STV), IECEx (PTB)
• Dust explosion protection ATEX - II 2 D Ex tb IIIC T123 °C Db
• Dust explosion protection IECEx - Ex tb IIIC T123 °C Db
• Gas explosion protection ATEX - II 2 G Ex de IIC T4 Gb
• Gas explosion protection IECEx - Ex de IIC T4 Gb
• IECEX dust certificate - IECEx PTB 06.0049X
• IECEX gas certificate - IECEx PTB 06.0049X

General

• Functional Description - A variety of lamp types and power outputs, as well as additional reflectors, make the 6050 series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.
• Highlights - Low maintenance and long service life with gas discharge lamps Suspended by means of ring bolts or pivoting mounting brackets Ex Zones 1, 2, 21 and 22 Size 1 has IP68 level of protection (10 m)
• Product Description - Pendant light fitting
• Product Type - 6050/11.1-11610-.0.-1
• Title Product Variant Technical Data - 6050/11.1-11610-.0.-1 Pend.light fitting
• WebCode - 6050A

Lighting Data

• Lamp - LME
• Lamp holder - E27
• Number of Lamps - 1

Mechanical Data

• Connection terminals finely-stranded max. - 4.00 mm²
• Connection terminals solid max. - 4.00 mm²
• Degree of protection (IP) - IP66 / IP68 (10 m)
• Enclosure material - Aluminium, Seawater-resistant
• Height - 392.000 mm
• Length - 236.000 mm
• Protection class - I (inner + outer PE)
• Protective glass material - Thermally resistant Pressed glass
• Type of connection cable - Finely stranded, solid, stranded
• Version - According to the order
• Weight - 10.900 kg
• Width - 236.000 mm
