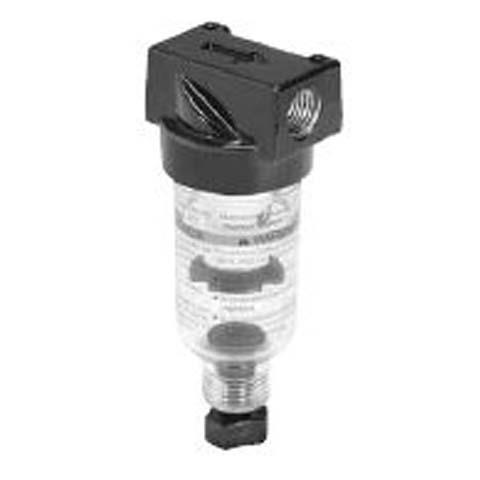

F03 Series Particulate Filter
Brand: Wilkerson Corporation
Features
- Excellent Water Removal Efficiency
- Unique Deflector Plate that Creates Swirling of the Air Stream Ensuring Maximum Water and Dirt Separation
- Easily Disassembled for Servicing Without the Use of Tools
1 - 8 of 8 Part Numbers
F03-01-000
- Port Size - 1/8"
- Model Type - Manual Drain
- Bowl Type - Polycarbonate Bowl
F03-01-D00
- Port Size - 1/8"
- Model Type - Piston Drain
- Bowl Type - Polycarbonate Bowl
F03-01-DM0
- Port Size - 1/8"
- Model Type - Piston Drain
- Bowl Type - Metal Bowl
F03-01-M00
- Port Size - 1/8"
- Model Type - Manual Drain
- Bowl Type - Metal Bowl
F03-02-000
- Port Size - 1/4"
- Model Type - Manual Drain
- Bowl Type - Polycarbonate Bowl
F03-02-D00
- Port Size - 1/4"
- Model Type - Piston Drain
- Bowl Type - Polycarbonate Bowl
F03-02-DM0
- Port Size - 1/4"
- Model Type - Piston Drain
- Bowl Type - Metal Bowl
F03-02-M00
- Port Size - 1/4"
- Model Type - Manual Drain
- Bowl Type - Metal Bowl
1 - 8 of 8 Part Numbers
Specifications
Brand
Flow Capacity
- 1/8": 22.0 scfm (10 dm³/s)
- 1/4": 24.0 scfm (11 dm³/s)
Maximum Supply Pressure
- Polycarbonate Bowl: 0-150 psig (0-10.3 bar)
- Metal Bowl: 0-250 psig (0-17.2 bar)
- Piston Drain: 10-250 psig (0.7-17.2 bar)
Operating Temperature
- Polycarbonate Bowl: 32° to 125° F (0° to 52° C)
- Metal Bowl: 32° to 175° F (0° to 80° C)
- Piston Drain: 32° to 125° F (0° to 52° C)
Port Size
- NPT: 1/8
- NPT: 1/4
Standard Filtration
- 5 micron
Weight
- .41 lb (0.18 kg)
