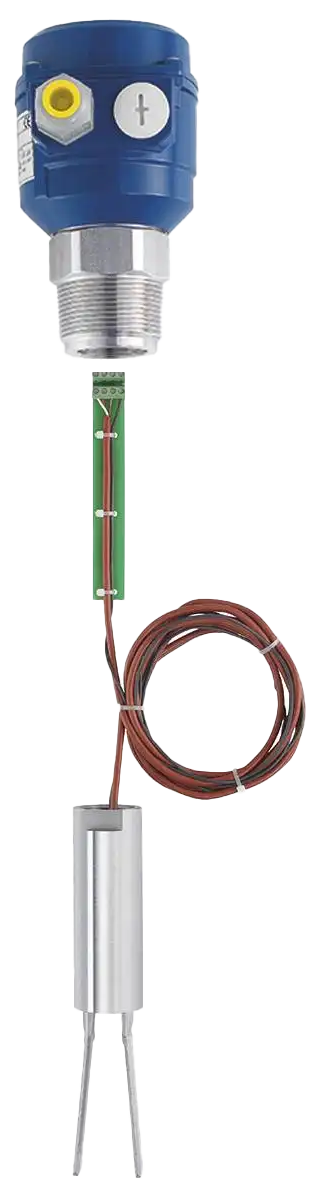

Vibranivo® - VN 1040 Vibration Level Switch

Brand: UWT GmbH
Add Product to My Catalog

Application Area

The vibrating fork Vibranivo® VN 1040 is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk materials.

The measuring probe will be available as a kit for flexible tube extension with cable length of 1500 mm and 4000 mm.

Thus, the customer himself defines the length of the probe by the length of the tube.
Features
  • Maintenance-free sensor for use in many bulk materials
  • Flexibility in probe length due to self-assembly kit
  • Plug and play level limit switch without calibration

Specifications

Brand

Measurement Principle

  • Vibration (Fork)

Measuring Task

  • Point Level Measurement

Version

  • Pipe Extension (Screwed)
  • Interface Detection

Medium

  • Solids

Mounting Position

  • Top
  • Horizontal
  • On a Socket

Ambient Temperature

  • -40° C to +60° C (-40 to +140° F)

Process Temperature

  • -40° C to +150° C (-40° F to +302° F)

Process Pressure

  • -1 bar … +16 bar (-14.5 psi … +232 psi)

Minimum Sensitivity

  • > 50 g/l (> 3 lb/ft³)

Housing Type

  • Standard

Housing Material

  • Aluminum

Housing Protection Rating

  • IP66

Threaded Connection

  • ≥ R 1-1/2"
  • ≥ NPT 1-1/2"

Flange Connection

  • ≥ 2" / ≥ DN 100

Hygienic Fittings

  • Tri-Clamp 2"

Wetted Materials

  • Stainless Steel 1.4305 (303)
  • Stainless Steel 1.4404 (316L)
  • Stainless Steel 1.4541 (321)

Mechanical Load

  • Tube: 100 Nm
  • Oscillating Rods: 0.6 kN

Minimum Immersion Length

  • 1500 mm (59")

Maximum Immersion Length

  • 4 m (13.15 ft)

Power Supply

  • 19-230 Vac
  • 12.5 - 36 Vdc
  • Universal Voltage: 19-55 Vdc / 19-230 Vac

Signal Output

  • Relay SPDT
  • Relay DPDT
  • Transistor PNP
  • 8/16 mA
  • 4-20 mA

Approvals

  • CE, ATEX, IEC-Ex, INMETRO, TR-CU

Explosion Protection

  • Dust Ignitionproof (Ex t)
  • Intrinsic Safe (Ex i)

Hygienic / Pharma

  • EG 1935/2004
  • FDA

Optical Indicator

  • LED

Adjustment Possibility

  • Adjustable Sensitivity
  • Adjustable Output Delay
  • Switchable Logic (Fail Safe High - Fail Safe Low)

  • Chemicals
  • Power
  • Metal
  • Building, Cement & Quarry
  • Food & Beverage
  • Synthetics
