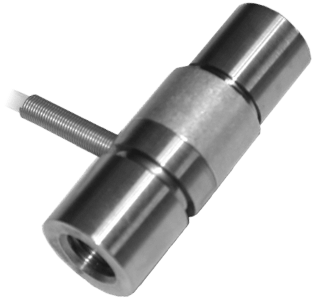

XFCT322 Miniature Load Cell
Brand: American Sensor Technologies IncThe XFTC322 series has been specifically developed to measure tension and/or compression in static and dynamic applications.
Fitted with metallic strain gauges in a Wheatstone bridge circuit, the XFTC322 has the capacity of measuring heavy loads of up to 10 kN [2 klbf], while providing excellent temperature stability. With two threaded M10 studs, the XFTC322 is easily installed in industrial or OEM applications. A strain relief spring strengthens the cable output.
Features- Wide Range of Temperature Compensated
- Optional IP Rating Improvement
- Heavy Duty
- High Stiffness
Specifications
Accuracy
- < ± 0.5 % of Full Scale
Approvals & Certifications
- CE
Compensated Temperature
- 0° to 150° C (32° to 302° F)
Consumption
- < 30 mA
Electrical Connectors
- Shielded Cable
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP50
Hysteresis
- ≤ ± 0.5 % of Full Scale
Input Impedance
- 700 ohms
Insulation Resistance
- ≥ 1,000 MΩ Under 50 Vdc
- ≥ 100 MΩ Under 50 Vdc
Linearization
- ≤ ± 0.5 % of Full Scale
Operating Temperature
- -55° to 175° C (-67° to 347° F)
Resistance
- 1 kΩ - Output Impedance
- 350 ohms - Output Impedance
Sensitivity
- < 1 % of Reading / 50° C (100° F) - Thermal Sensitivity Shift
- ± 2 V ± 0.2 V
- 1 mV/V
Supply Voltage
- 10 Vdc - XFTC322
- 10-30 Vdc - XFTC322-A1
Temperature Range
- -55° to 175° C (-67° to 347° F)
Thermal Drift
- < 1 % of Full Scale / 50° C (100° F) - Thermal Zero Shift
UNF/UNC Connection
- 3/8"-24 UNF
Zero Offset
- < ± 0.5 % of Full Scale
- 2.5 V ± 0.2 V
- Dynamic Strain Cylinder Regulation
- Miniature Press-fit Device
- Fatigue Test Benches
- Robotics Regulation
- Heat Room Environment
