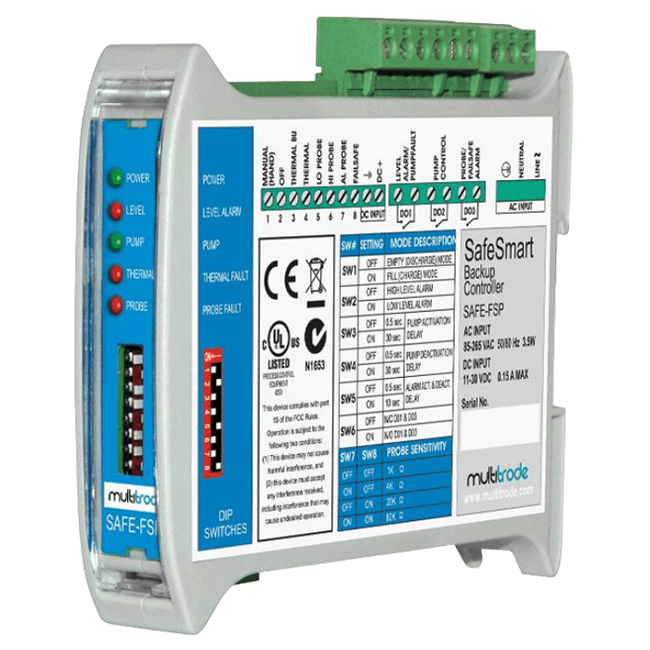

SAFE FSP SafeSmart Backup Controller
Brand: MultitrodeThe SafeSmart-FSP Backup Controller (Safe-FSP) provides a complete backup solution including pump control, level alarm and pump protection in a single tightly integrated package.
Features- Perfect pump control for one pump - either primary or redundant control
- One level alarm - either high or low
- Manual (hand) operation from an external selector switch or keypad
- Pump thermal protection - thermistor, thermal switch or Flygt FLS
- Adjustable delays for pump start/stop and alarms
- Failed probe detection when used with new FailSafe Probe
- Adjustable sensitivity for MultiTrode Probes
- Parallel operation with MultiSmart
- When used as a back-up with an override manual/off/auto switch, the controller also provides thermal protection in manual mode
Specifications
Brand
Ambient Temperature Range
- -10° to 60° C (14° to 140° F)
Approvals & Certifications
- CE
- UL
Current
- DC Power Supply: 0.15 A, Max.
Frequency
- 50/60 Hz
Humidity
- 5 to 90 % Non-Condensing
Mounting
- DIN Rail
Power
- 3.5 W
Power Supply
- 12-30 Vdc
- 85-265 Vac
Relay Output
- 2 A (Inductive Current)
- 250 Vac (AC Voltage Rating)
- 30 Vdc (DC Voltage Rating)
- 5 A (Resistive Current)
- Form A Typical
