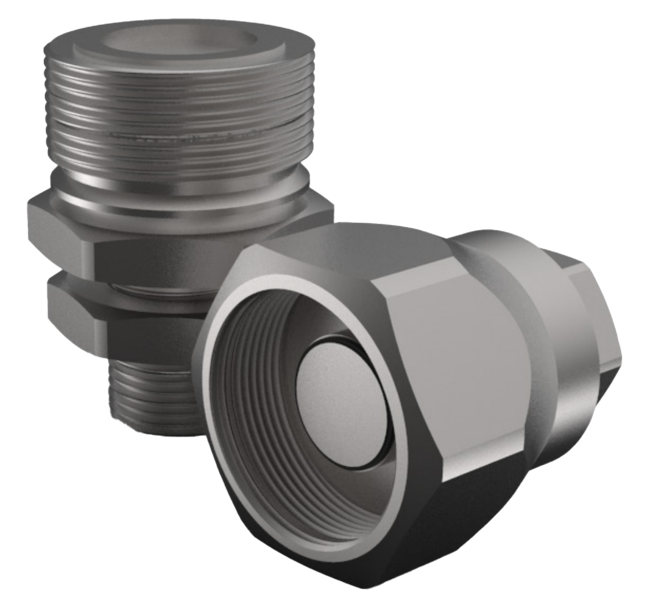

MQS-VS Type Agricultural Valve
Brand: Manuli Hydraulics- Trailer brake coupling specially designed to connect the hydraulic breaking system of tractors to trailers
- Connection and disconnection by screwing the sleeve
- Connection secured on the thread between the sleeve and the male coupling
- Flat-valve
- Connection and disconnection under pressure allowed
- The male has to be placed on the tractor and the female on the implement
- Interchangeable with similar products available on the market
Specifications
Brand
Temperature Range
- -22° to 230° F (-30° to 110° F)
Safety Factor
- 4:1 for Dynamic Pressures
Certifications & Approvals
- ISO 18869
Material of Construction
- Coupling: Steel
- Valve: Carbonitrided
- Spring: C98 Steel
- Seal: NBR
- Backup Ring: PTFE
Size
- DN 12.5 (1/2")
Working Pressure
- 20 MPa (2,900 psi) Dynamic
Oil Spillage Connection/ Disconnection
- 0.02 cc (0.001 in³)
Rated Flow
- 34 l/min (9.0 US gpm) at 0.2 MPa of Pressure Drop
