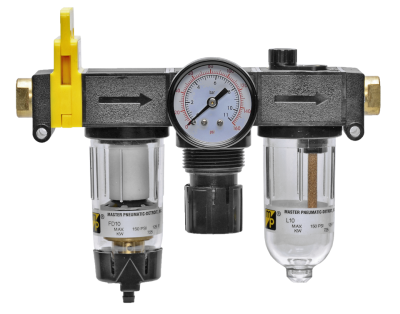

Sentry VFDRL10 and 11 Modular 1/8", 1/4"
Brand: Master Pneumatic
Features
- Individual filter (FD10); piston-type regulator (R10M) or diaphragm-type (R11M); wick-feed lubricator (L10); lockout valve (V10).
- Modular assembly and mounting.
- Threaded ports or quick-connect fittings for tubing up to 10 mm in diameter.
- 5-µm-rated polyethylene filter element; optional sintered bronze elements.
- High-strength polycarbonate plastic bowls or aluminum bowls.
- Internal automatic filter drain; optional manual drain.
- Self-relieving regulator; non-relieving optional.
- Pressure gauge.
- NPTF port threads; optional BSPP threads.
Specifications
Brand
Ambient / Media Temperature
- 40° to 125° F (4° to 52° C)
Enclosure / Body Material
- Body: Acetal
Material of Construction
- Bowl: Polycarbonate Plastic, Aluminum
- Filter Element: Polyethylene, Sintered Bronze
- Regulator Dome and Knob: Acetal
Seal Material
- Nitrile
Inlet Pressure
- 15 to 150 psig (1 to 10 bar)
Outlet Pressure
- Adjustable Up to 100 psig (7 bar)
Pressure Gauge
- 0 to 160 psig (10.3 bar), 1/8 NPT Gauge Ports Front & Rear
Mounting
- 1-3/16 inch (30 mm) Hole Panel Mounting
Media
- Compressed Air
