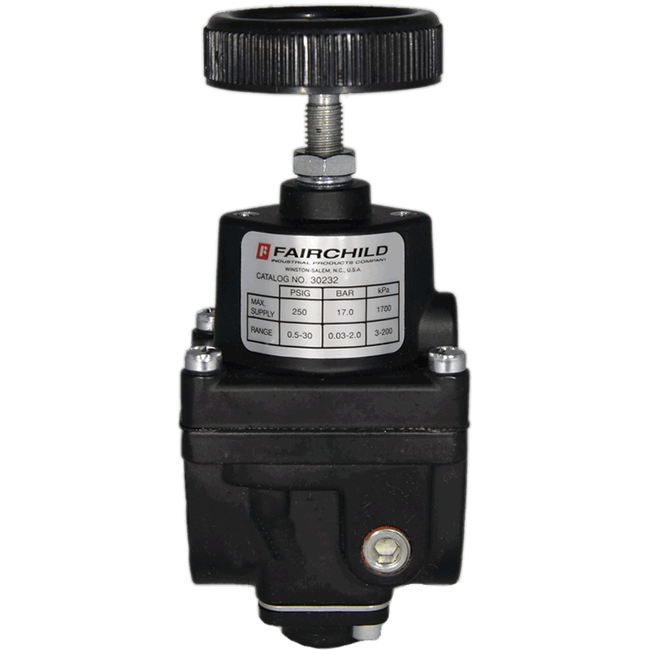

Model 30 Compact Precision Pressure Regulator
Brand: Fairchild Industrial Products
The Rotork Fairchild Model 30 is a compact precision pressure regulator designed for applications that require high performance and accurate process control where space may be limited or you wish to reduce the overall size of your panel or equipment.
Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.
The Model 30 pneumatic regulator features control sensitivity of 1/4" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.
The Fairchild Model 30 precision regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers five (5) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa.
Benefits
- Excellent for applications where space is tight
- High accuracy for use in precision applications.
- Allows the regulator to remain unaffected by supply pressure changes.
- For use in applications with high flow requirements.
- Compensates downstream pressure droop under flow conditions.
- Isolates the diaphragm from the main flow to eliminate hunting and buzzing.
- Permits you service the Model 30 regulator without removing it from the line.
- Compact size
- Control sensitivity of 1/4" water column
- Pressure Balanced Supply Valve
- Flow of up to 40 SCFM with 100 psig
- Aspirator tube design
- Separate Control Chamber
- Unit construction
1 - 12 of 2,253 Part Numbers
30212
- Set Point Range: 0-2 psig, 0-0.1 bar, 0-15 kPa
- Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
- Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
- Port Size: 1/4" NPT
- Materials of Construction:
- Body & Housing: Aluminum
- Trim: Brass
- Elastomer: Nitrile on Dacron
30212A
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Silicone
- Actuation Adjustment Means - Knob Adjustment
- Relief - Relieving
- Mounting - No Mounting Bracket
30212AM
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Silicone
- Actuation Adjustment Means - Knob Adjustment
- Relief - Relieving
- Mounting - Mounting Bracket
30212B
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Nitrile on Dacron
- Actuation Adjustment Means - Knob Adjustment
- Relief - Low Bleed
- Mounting - No Mounting Bracket
30212BA
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Silicone
- Actuation Adjustment Means - Knob Adjustment
- Relief - Low Bleed
- Mounting - No Mounting Bracket
30212BJ
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Fluorocarbon (Viton)
- Actuation Adjustment Means - Knob Adjustment
- Relief - Low Bleed
- Mounting - No Mounting Bracket
30212BP
- Set Point Range: 0-2 psig, 0-0.1 bar, 0-15 kPa
- Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
- Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
- Port Size: 1/4" NPT
- BP: Back Pressure
- Materials of Construction:
- Body & Housing: Aluminum
- Trim: Brass
- Elastomer: Nitrile on Dacron
30212BS
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Nitrile on Dacron
- Actuation Adjustment Means - Screwdriver Adjust
- Relief - Low Bleed
- Mounting - No Mounting Bracket
30212BSA
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Silicone
- Actuation Adjustment Means - Screwdriver Adjust
- Relief - Low Bleed
- Mounting - No Mounting Bracket
30212BSJ
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Fluorocarbon (Viton)
- Actuation Adjustment Means - Screwdriver Adjust
- Relief - Low Bleed
- Mounting - No Mounting Bracket
30212BT
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Nitrile on Dacron
- Actuation Adjustment Means - Tamper Proof
- Relief - Low Bleed
- Mounting - No Mounting Bracket
30212BTA
- Base Model - 3021
- Port Size - 1/4" NPT
- Port Thread - NPT
- Elastomers - Silicone
- Actuation Adjustment Means - Tamper Proof
- Relief - Low Bleed
- Mounting - No Mounting Bracket
1 - 12 of 2,253 Part Numbers
Specifications
Actuator Type
- Knob Adjust
- Plunger Operated
- Screwdriver Adjust
- Tamper-Proof
Ambient Temperature Range
- -40° to 93° C (-40° to 200° F)
BSP Connection
- 1/4" BSPP Female
- 1/4" BSPT Female
- 3/8" BSPP Female
- 3/8" BSPT Female
Elastomers
- Fluorocarbon (Viton)
- Nitrile on Dacron
- Silicone
Enclosure, Body Material
- Aluminum
Environmental Protection
- Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres
Exhaust Capacity - Relieving Units Only
- 2 scfm
- 2.0 scfm (3.4 m³/hour)
- 3.4 m³/hour
Flow Capacity
- 40 scfm
- 40 scfm (68 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 20 (bar: 1.5, kPa: 150) Set Point
- 68 m³/hour
Media
- Compressed Air
- Gas
Mounting
- None
NPT Connection
- 1/4" NPT Female
- 3/8" NPT Female
Output Options
- None
Pressure Range
- bar: 0 to 1.36
- bar: 0 to 7
- bar: 0.034 to 2.04
- bar: 0.068 to 4.08
- bar: 0.136 to 10.20
- kPa: 0 to 137
- kPa: 0 to 700
- kPa: 13.6 to 1,020
- kPa: 3.4 to 204
- kPa: 6.8 to 408
- psi: 0.5 to 30
- psig: 0 to 100
- psig: 0 to 20
- psig: 1 to 60
- psig: 2 to 150
Relief
- Low Bleed
- Low Flow
- Non-Relieving
- Relieving
Sensitivity
- 1/4 inH₂O (0.64 cm)
Supply Pressure - Maximum
- bar: 17
- kPa: 1,700
- psig: 250
Supply Pressure Effect
- Less than 0.014 bar
- Less than psi: 0.002 (bar: 0.00014, kPa: 0.14)
- Less than psig: 0.2 (bar: 0.014, kPa: 1.4)
- Less than psig: 0.2 (bar: 0.014, kPa: 1.4) for psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure
Trim Material
- Brass
Vent
- Straight
