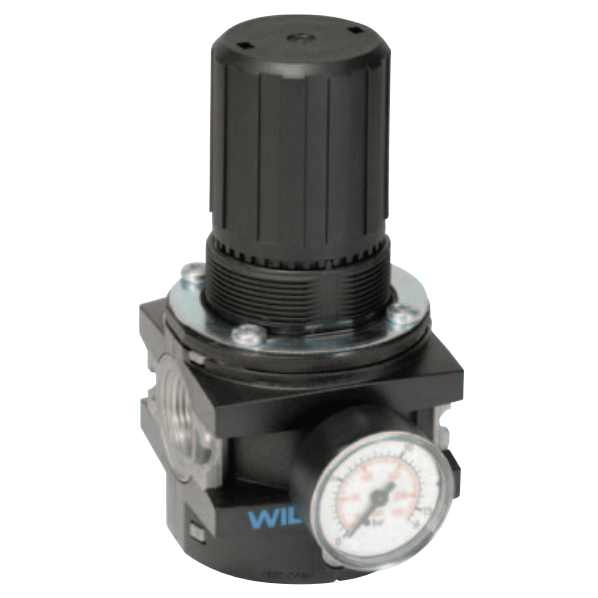

R90 Series Regulator
Brand: Wilkerson Corporation
Features
- Integral 3/4" or 1" ports (BSPP & NPT)
- Robust but lightweight aluminum construction
- Secondary pressure ranges 12 and 16 bar
- Rolling diaphragm for extended life
- Secondary aspiration plus rolling diaphragm provides quick response and accurate pressure regulation
- Optional tamperproof regulator padlock
- Reverse flow / relieving option
- Low temperature -40°
1 - 12 of 64 Part Numbers
.png)
R90-06-A000
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 174 psi
- Pressure Gauge - No
- Lock Function - Standard
- Flow - Non-Reverse Flow
R90-06-A00R
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 174 psi
- Pressure Gauge - No
- Lock Function - Standard
- Flow - Reverse Flow
R90-06-A0A0
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 174 psi
- Pressure Gauge - No
- Lock Function - Lockable Type (Not Field Convertible)
- Flow - Non-Reverse Flow
R90-06-A0AR
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 174 psi
- Pressure Gauge - No
- Lock Function - Lockable Type (Not Field Convertible)
- Flow - Reverse Flow
R90-06-AG00
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 174 psi
- Pressure Gauge - Yes
- Lock Function - Standard
- Flow - Non-Reverse Flow
R90-06-AG0R
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 174 psi
- Pressure Gauge - Yes
- Lock Function - Standard
- Flow - Reverse Flow
R90-06-AGA0
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 174 psi
- Pressure Gauge - Yes
- Lock Function - Lockable Type (Not Field Convertible)
- Flow - Non-Reverse Flow
R90-06-AGAR
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 174 psi
- Pressure Gauge - Yes
- Lock Function - Lockable Type (Not Field Convertible)
- Flow - Reverse Flow
R90-06-H000
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 232 psi
- Pressure Gauge - No
- Lock Function - Standard
- Flow - Non-Reverse Flow
R90-06-H00R
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 232 psi
- Pressure Gauge - No
- Lock Function - Standard
- Flow - Reverse Flow
R90-06-H0A0
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 232 psi
- Pressure Gauge - No
- Lock Function - Lockable Type (Not Field Convertible)
- Flow - Non-Reverse Flow
R90-06-H0AR
- Thread Type - NPT
- Port Size - 3/4"
- Function / Pressure Range - Relieving / 0 to 232 psi
- Pressure Gauge - No
- Lock Function - Lockable Type (Not Field Convertible)
- Flow - Reverse Flow
1 - 12 of 64 Part Numbers
Specifications
Brand
Flow Capacity (All Models)
- 380 scfm
Maximum Supply Pressure (All Models)
- 254 psig (17.5 bar)
Operating Temperature
- 3/4" 12 bar relieving: -40° to 140° F (-40° to 60° C)
- 3/4" 12 bar relieving + Pressure Gauge: 14° to 140° F (-10° to 60° C)
- 1" 12 bar relieving: -40° to 140° F (-40° to 60° C)
- 1" 12 bar relieving + Pressure Gauge: 14° to 140° F (-10° to 60° C)
Height x Width x Depth
- 7.2 x 3.5 x 3.7 in (182 x 90 x 94 mm)
Weight
- 3/4" 12 bar relieving: 2.4 lb (1.08 kg)
- 3/4" 12 bar relieving + Pressure gauge: 2.5 lb (1.13 kg)
- 1" 12 bar relieving: 2.4 lb (1.08 kg)
- 1" 12 bar relieving + Pressure Gauge: 2.6 lb (1.19 kg)
