Add the Model 1171 Pressure Transmitter to your store or catalog
Book Your Demo and See How
or create your store

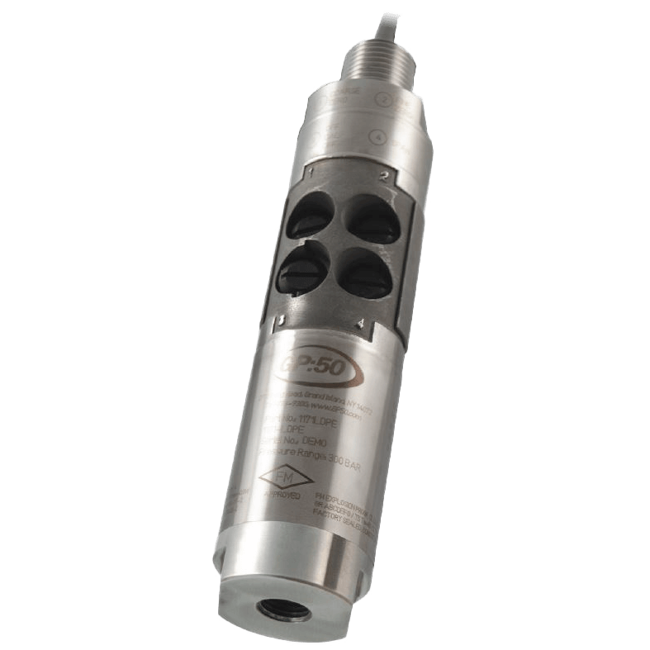

GP:50 Externally Adjustable Pressure Transmitter, Model 1171

Model 1171 Pressure Transmitter

Brand: GP:50 New York Ltd
Add Product to My Catalog

Features
  • Output Signal: 4-20 mA, two-wire loop-powered
  • Supply Voltage: 9.0 to 36 Vdc
  • Pressure Range: 0 to 15 psiv, 0 to 100,000 psi (0 to 6,895 bar, 0 to 689,476 kPa)
  • Electrical Connections: 1/2" Male NPT conduit with 6ft 18 AWG multi-conductor cable
  • Process Connection: 1/4" Female NPT/Autoclave type F-250-C/Autoclave type F-312-C150
  • Approvals: FM/CSA Explosion proof, Intrinsically safe, CE compliant, EMC 89/336/EEC, PED 97/23/EC, IP67
  • Temperature Range:
    • Operating: -23° to 85°C (0° to 185°F)
    • Compensated: -17.7° to 85°C (0° to 185°F)
    • Effect on Zero/Span: <±1.0% Full Scale at 100°F
  • Static Accuracy: Standard: ±1.0% Full Scale Output / Improved: ±0.5% and ±0.2% Full Scale Output
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Wetted Parts: 17-4 Stainless Steel

Specifications

Brand

Accuracy

  • < 0.25 % of FSO

Adjustment Type

  • Fine & Coarse Adjustable

Approvals & Certifications

  • CE
  • CSA Intrinsic Safety, Explosion-proof
  • EMC 89/336/EEC
  • FM Intrinsic Safety, Explosion-proof
  • PED 97/23/EC

Burst Pressure

  • 1.5X Full Scale 108,000 psi (7,446 bar), whichever is Less

Circuit Protection

  • Reverse Polarity

Compensated Temperature

  • -18° to 85° C (0° to 185° F)

Electrical Connectors

  • 1/2" NPT Male Conduit with 6 ft of 18 AWG Multiconductor Cable

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • IP67

Insulation Resistance

  • > 10 MΩ at 50 Vdc & 21° C (70° F)

Load Impedance

  • 500 ohms

Operating Temperature

  • -23° to 85° C (-10° to 185° F)

Output

  • 4-20 mA, 2-wire Loop-Powered

Pressure Range

  • bar: 1 to 6,895
  • kPa: 0 to 689,476
  • psi: 0 to 100,000
  • psiv: 0 to 15

Pressure Type

  • Absolute
  • Gauge
  • Sealed Gauge
  • Vacuum

Proof Pressure

  • 1.2X Full Scale or 108,000 psi (7,446 bar), whichever is Less

Response Time

  • < 5 ms 10 % to 90 %

Span & Zero Effect

  • < ± 1.0 % of FSO 38° C (100° F)
  • < 3.5 % of FSO 38° C (100° F) at 5: 1 Ranging

Stability

  • 0.25 % of FSPR over Six Months

Supply Voltage

  • 9 to 36 Vdc

Wetted Materials

  • 630 Stainless Steel

Documentation

Data Sheets
