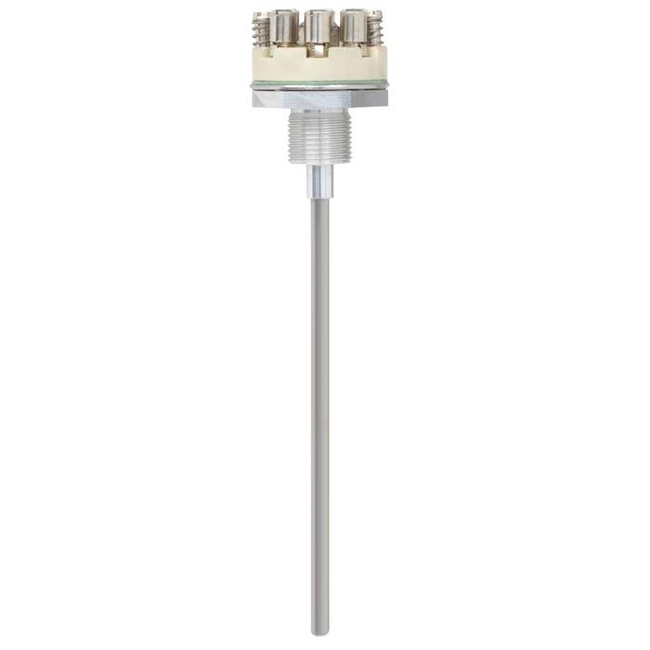

Measuring Insert for Thermocouple - TC10-K
Brand: WIKA Alexander Wiegand SE & Co. KGThe measuring inserts for thermocouples described here are designed for installation in a thermometer model TC10-L. Operation without thermowell is appropriate only in special cases.
The measuring insert is made of flexible, mineral insulated sheathed cable. The sensor is located in the tip of the measuring insert. This model is spring-loaded to ensure that the measuring insert is firmly pressed down on the thermowell bottom.
Features- Application ranges from -200 ... +600 °C (-328 ... +1,112 °F).
- Made of mineral-insulated sheathed cable.
- For all standard thermowell designs.
- Spring-loaded design.
- Explosion-protected versions.
Specifications
Sensor Range
- -40° to 1,200° C (-40° to 2,192° F)
Certifications & Approvals
- SIL
- Uzstandard
- UkrSEPRO
- BelGIM
- KazInMetr
- MTSCHS
- GOST
- PESO
- KOSHA
- NEPSI
- INMETRO
- IECEx
- EAC
- CE
- ATEX
Output
- 4-20 mA HART
Sensor Type
- Thermocouples Type K, J, E, N, T
- Replacement measuring insert for servicing
