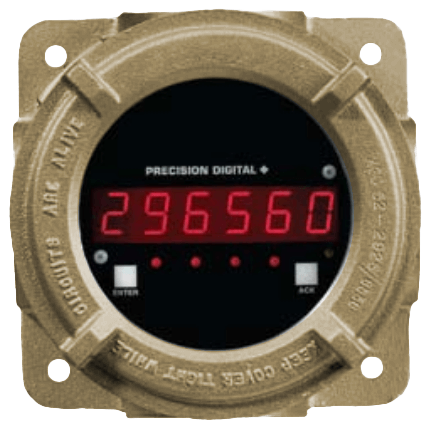

Add the PD656 Process Meter to your store or catalog
Book Your Demo and See How
or create your store

Features
  • 4-20 mA, 1-5 V, 0-5 V, 0-10 V inputs
  • 4½ digit + extra zero display for rate
  • 6 digit display for total
  • Programmable exponent for weirs & flumes
  • Pump alternation control
  • Two 24 Vdc transmitter power supplies
  • 200 ma transmitter power supply option
  • 2 or 4 relays & 4-20 ma output options
  • 115 Vac or 230 Vac power
  • Operating temperature: -20 to 65°C

1 - 12 of 12 Part Numbers
PD656-2-34
PD656-2-34
  • Power - 24 Vdc
  • Relay - 2 Relays
PD656-2-35
PD656-2-35
  • Power - 24 Vdc
  • Relay - 4-20 mA Output
PD656-2-36
PD656-2-36
  • Power - 24 Vdc
  • Relay - 2 Relays & 4-20 mA Output
PD656-2-37
PD656-2-37
  • Power - 24 Vdc
  • Relay - 4 Relays
PD656-2-38
PD656-2-38
  • Power - 24 Vdc
  • Relay - 4 Relays & 4-20 mA Output
PD656-2-N
PD656-2-N
  • Power - 24 Vdc
  • Relay - None
PD656-34
PD656-34
  • Power - 115/230 Vac
  • Relay - 2 Relays
PD656-35
PD656-35
  • Power - 115/230 Vac
  • Relay - 4-20 mA Output
PD656-36
PD656-36
  • Power - 115/230 Vac
  • Relay - 2 Relays & 4-20 mA Output
PD656-37
PD656-37
  • Power - 115/230 Vac
  • Relay - 4 Relays
PD656-38
PD656-38
  • Power - 115/230 Vac
  • Relay - 4 Relays & 4-20 mA Output
PD656-N
PD656-N
  • Power - 115/230 Vac
  • Relay - None
1 - 12 of 12 Part Numbers

Specifications

Approvals & Certifications

  • UL Classified & CSA Certified Class I Groups C, D, Class II Groups E, F, G, Class III Hazardous Outdoor (Typical 4) Locations.

Deadband

  • 0 to 100 % of Full Scale

Display

  • 0.88" (22.4 mm)
  • 4-1/2-Digits

Enclosure, Body Material

  • Sand-Cast Aluminum

Environmental Protection

  • IP66
  • NEMA 4
  • NEMA 7
  • NEMA 9

Humidity

  • 0 to 90 % Non-Condensing

Input

  • 0-10 V
  • 0-20 mA
  • 0-5 V
  • 1-5 V
  • 4-20 mA

Input Impedance

  • > 300 kΩ (Voltage Ranges)
  • 100 ohms (Current Ranges)

Mounting

  • 7/16" Holes for Wall Mounting

Operating Voltages

  • 50/60 Hz

Power Supply

  • 115 Vac
  • 22-28 Vdc
  • 230 Vac

Storage Temperature

  • -40° to 85° C (-40° to 185° F)
