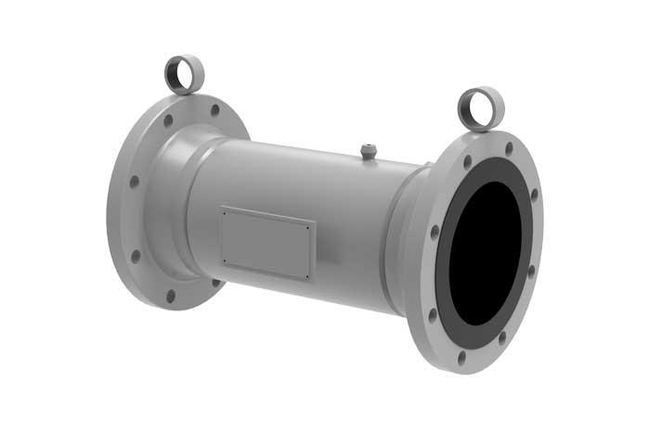

Model LPL Low Pressure Loss Venturi Flow Meter
Brand: PresoThe Venturi Model LPL (Low Pressure Loss Venturi Design) is a Venturi Nozzle design, differential pressure flow device.
The successful Low-Loss design has over 35 years of proven field performance in a wide variety of applications.
The reduced costs of operating are inherent with the design.
The low installation costs are due to the short laying length.
Features- Provides longevity, reliability and long term performance.
- Provides an un-calibrated accuracy of ±3% (±0.5% calibrated) with a repeatability of ±0.1%.
- Is designed in accordance to ASME and ISO standards and it offers the highest “As Built” accuracy.
- Flow is restricted for the shortest period of time.
- Lowest pressure loss.
- Lowest cost.
- Lowest accuracy.
- Standard and Unique Alloys.
- Durable solution for liquids, gas, steam and mixed media.
- Easily installed in any position with minimal straight pipe requirements (5 pipe diameters upstream and 2 pipe diameters downstream.
- Optional: RTD.
Specifications
Brand
Accuracy
- (Calibrated) ± 0.5 %
- (Uncalibrated) ± 3 %
Flow Range
- 0.25 to 825,000 gpm
Industries
- Process or Industrial
Pressure Range
- Up to 9,000 psi
Size
- 1/2 to 60"
Temperature Range
- Up to 1500° F
