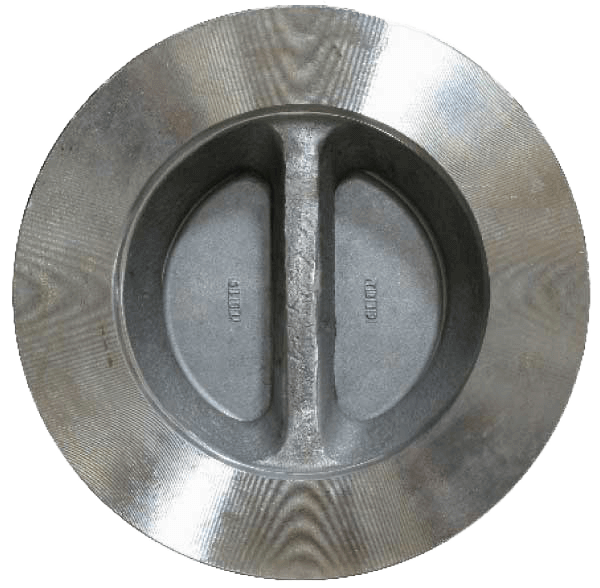

FE Series Stainless Steel Wafer Check Valve
Brand: Sure Flow Equipment IncThe Dual Plate Check Valve features exceptional flow characteristics.
The compact wafer style body is a one piece, retainerless model which eliminates potential leak paths. The dual discs are designed to provide maximum strength with minimum opening time. The full contact seats maintain positive shut-off at minimum working pressure.
Torsion springs assist in positive shut-off and disc closure, preventing backflow. The two heavy duty, corrosion resistant shafts act as stops to prevent over-travel of the discs. Thrust washers reduce friction and wear of the valve disc hinges.
FE Series Stainless Steel Wafer Check Valves include:
- 316SS Body
- 316SS Plates
- Viton Seat or Metal Seat
- Inconel Spring
Specifications
Brand
Size
- FE150SS: 2″ to 36″
- FE3000SS: 2″ to 16″
- FE600SS: 2″ to 12″
Body Material
- 316 Stainless Steel
Seat/Seal Material
- Viton/316 Stainless Steel
Material of Construction
- Shaft: 316 Stainless Steel
- Disc: SA315 CF8M
