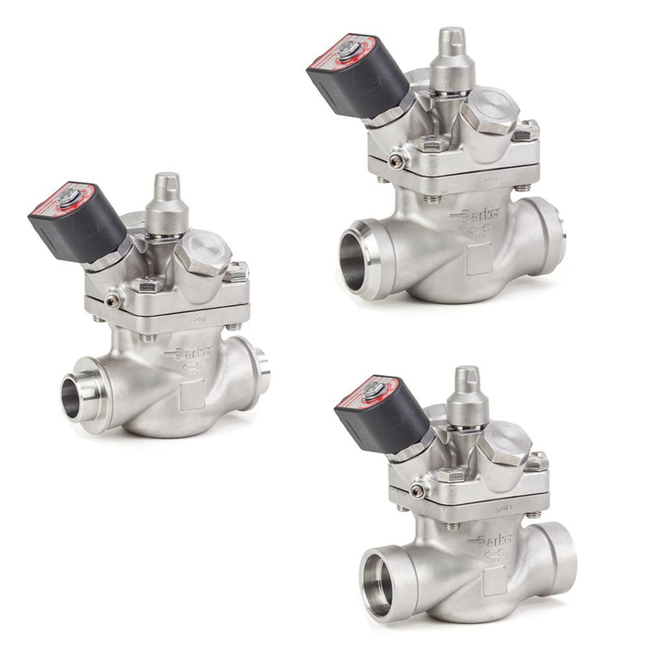

Refrigeration Solenoid Valve - PS4C
Brand: Parker - Fluid Control DivisionThe PS4C is a weld-in, the valves reduce the potential for connection leaks and can be entirely serviced from the top.
This improved design has a higher working pressure, greater working temperature range and higher flow capacities than competitive products.
These valves provide long-term performance and with replaceable internal components.
Specially designed wear rings eliminate the need for removal of the body from the line (maintenance-free).
Features- Stainless steel construction increases product life cycle
- Cartridge based design simplifies service and eliminates body wear
- Increased flow capacity enables smaller valve sizing
- Overall weight reduction up to 50% compared to traditional flanged products
- Integral features prevent contaminants from reaching the pilot section of the valve
- Suitable for ammonia, CO₂ and halocarbon refrigerants
- Multiple refrigerant capacities available
- Interchangeable with other P-Series offerings
- Coil options to meet various applications
1 - 10 of 10 Part Numbers
1 - 10 of 10 Part Numbers
Specifications
Maximum Fluid Temperature
- 120° C / 248° F
Port Size
- 3/4" or 1" / 20 mm or 25 mm
Maximum Ambient Temperature
- 60° C / 140° F
Model Number
- Please Configure Part for Model Number
Maximum Rated Pressure
- 754 psig / 52 bar
Minimum Ambient Temperature
- -60° C / -76° F
Connection Type
- Socket Weld or Butt Weld
Minimum Fluid Temperature
- -60° C / -76° F
Capacity Plug
- Full Capacity
Maximum Operating Pressure
- 300 psig / 20.7 bar
Coil Type
- 120 AC~60 Hz- Leaded Standard or No Coil Style
Body Material
- Stainless Steel
Minimum Pressure Drop
- 2 psig / 0.14 bar
Connection Size
- 3/4" to 1-1/4"
Depending on the specific variation of this valve, the application may include, but is not limited to
- Evaporator Pressure Control
- Temperature Control
- Defrosting
- Maximum Cooling
- Regulating Defrost
- Crankcase Pressure Regulation
- Liquid Chillers
- Low Pressure Drop
- Hot Gas Bypass
- Load Change Compensation
- Reducing Liquid or Vapor Line Pressure
- Any Inlet Pressure Control
- Non-Atmospheric Relief
- Application with Harsh Environments
