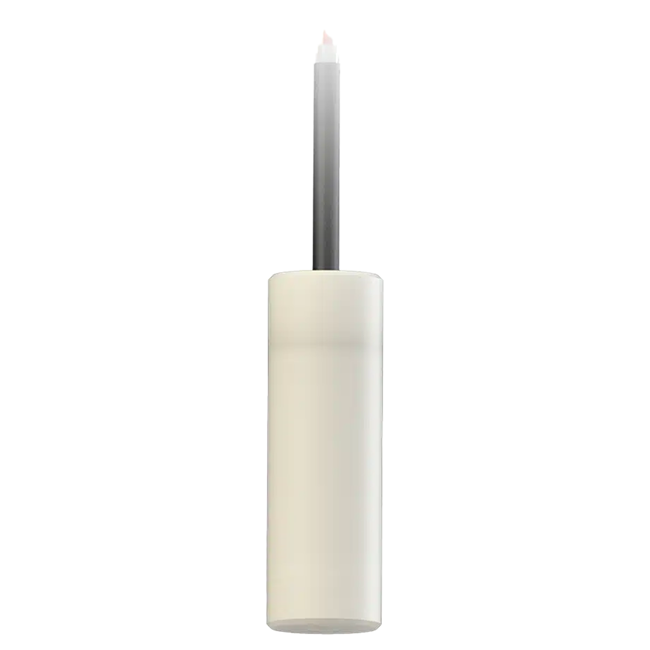

PT-503 Submersible Level Transmitter
Brand: Automation Products Group - APGThe PT- 503 has been engineered with advanced materials for most chemical applications
Features- Simple to install
- High precision, amplified outputs 4-20 mA, 0.5 - 4.5 VDC (Ratiometric)
- Withstands most caustic or corrosive chemicals
Specifications
Current Draw
- 4-20 mA: 3 - 30 mA
- 0.5 - 4.5 Vdc: 3 mA
Fluid Maximun Specific Gravity
- 2
Internet Connectivity
- 4-20 mA version via RST-5003
Maximum Submersible Depth
- 69 ft / 21 m in water / 30 psig
Operating Temperature
- -18° to 70° C, 0° to 158° F
Outputs
- 4-20 mA
- 0.5 - 4.5 VDC, Ratiometric
Pressure Range
- 0 - 30 psig
Supply Voltage
- 4-20 mA: 9-30 Vdc
- 0.5 - 4.5 VDC: 4.5 - 5.5 VDC
Temperature Compensation Range
- 32° to 122° F, 0° to 50° C
Temperature Error - 70°F Reference
- Zero: ± 0.014 % of Full Scale /°C, -18° to 70° C
- Span: ± 0.014 % of Full Scale /°C, -18° to 70° C
Vented Urethane Cable
- Tensile Strength up to 200 lb
Wetted Materials
- PVDF
- FKM (Viton ETP)
- Ceramic AL2O3
- FEP
